4´´ ST Series adopts import PPO for impeller, reinforced PC for cover plate and AISI304 for diffuser, good wear resistance and sand resistance.
PDF Download
send e-mail sales@jinbapump.com
1、Performance Characteristics
1.High-grade Stainless steel for casing of motor and pump, shaft coupling, fastener, etc. elegant appearance, strong decay resistance, outstanding durability;
2. Floating impellers adopts single-stage floating structure, pom for impeller, high-strength composite PC for diffuser and cover plate and strong bearing gasket, which greatly reduce backwater and highly improve efficency;
3. Brass outlet and inlet, attractive and practical;
4. High-efficient and energy-saving motor is suitable for drinking water, filled with food-grade white oil, non-toxit and pollution-free;

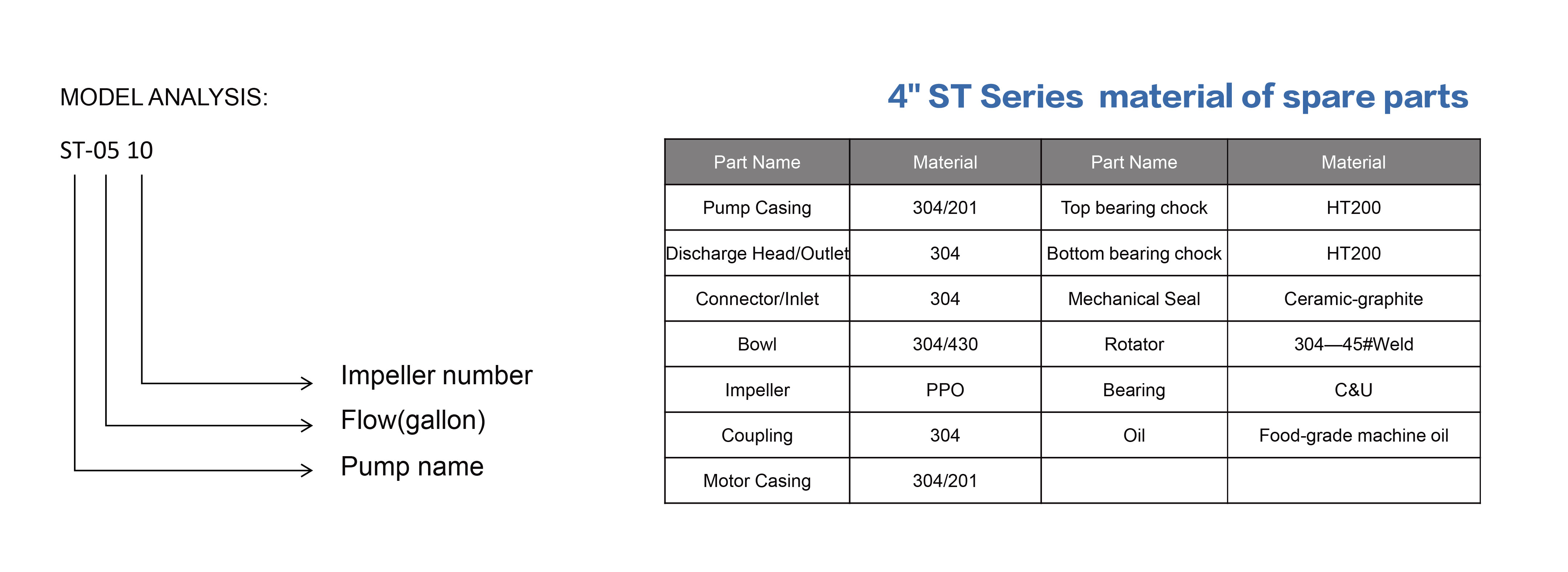

5. Import PPO for impeller, reinforced PC for cover plate and AISI304 for diffuser, good wear resistance and sand resistance;
6. The outlet is equipped with stainless steel check valve, to effectively prevent the impact of water hammer.

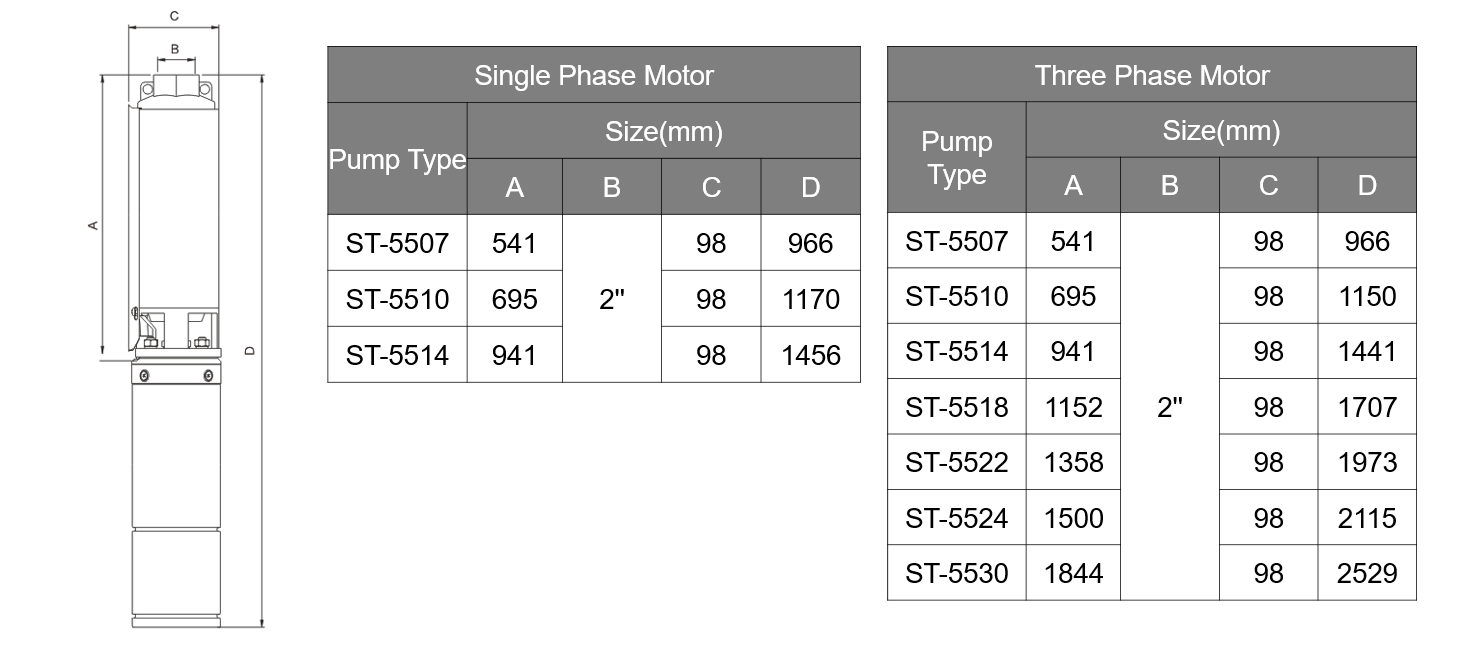

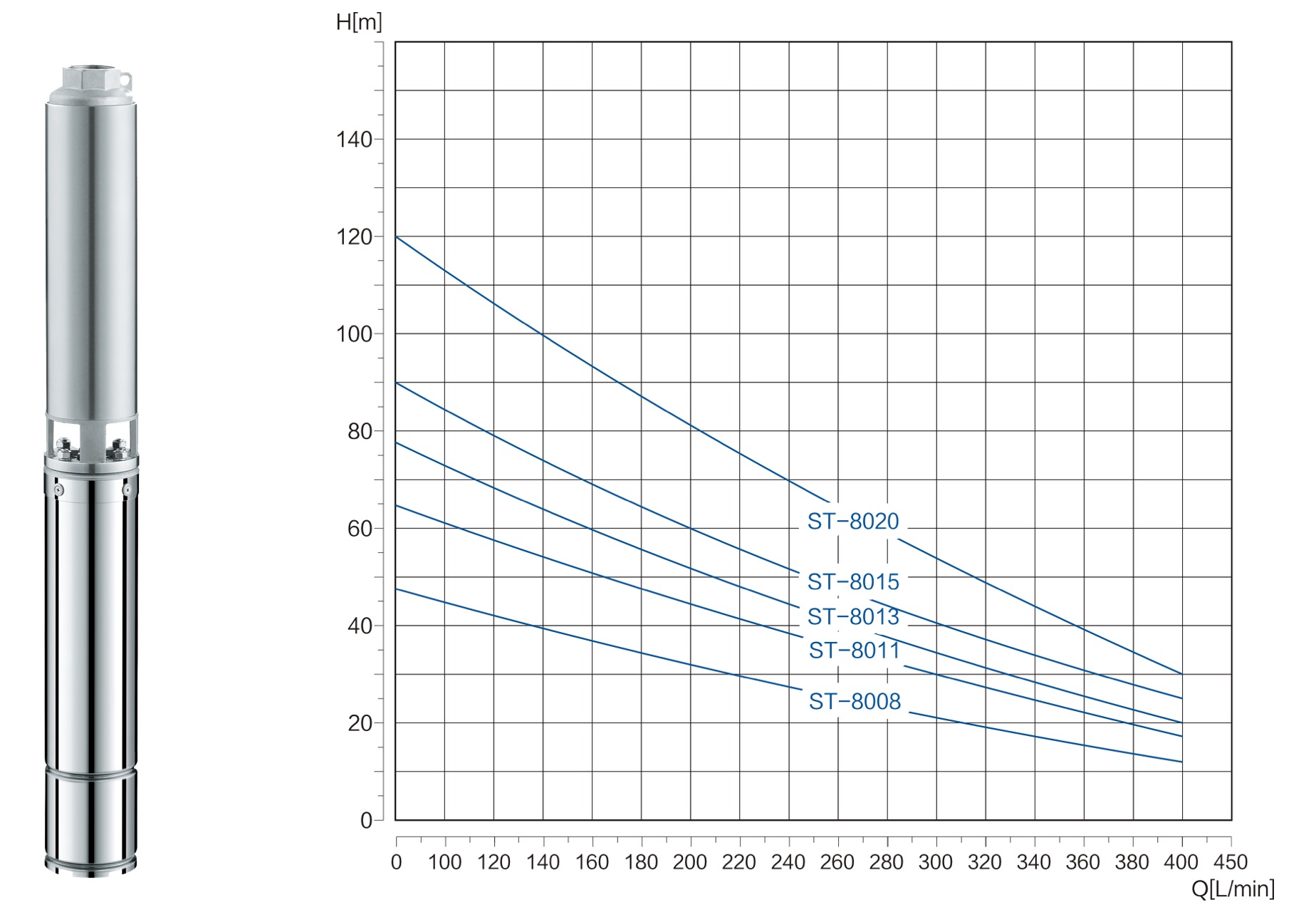

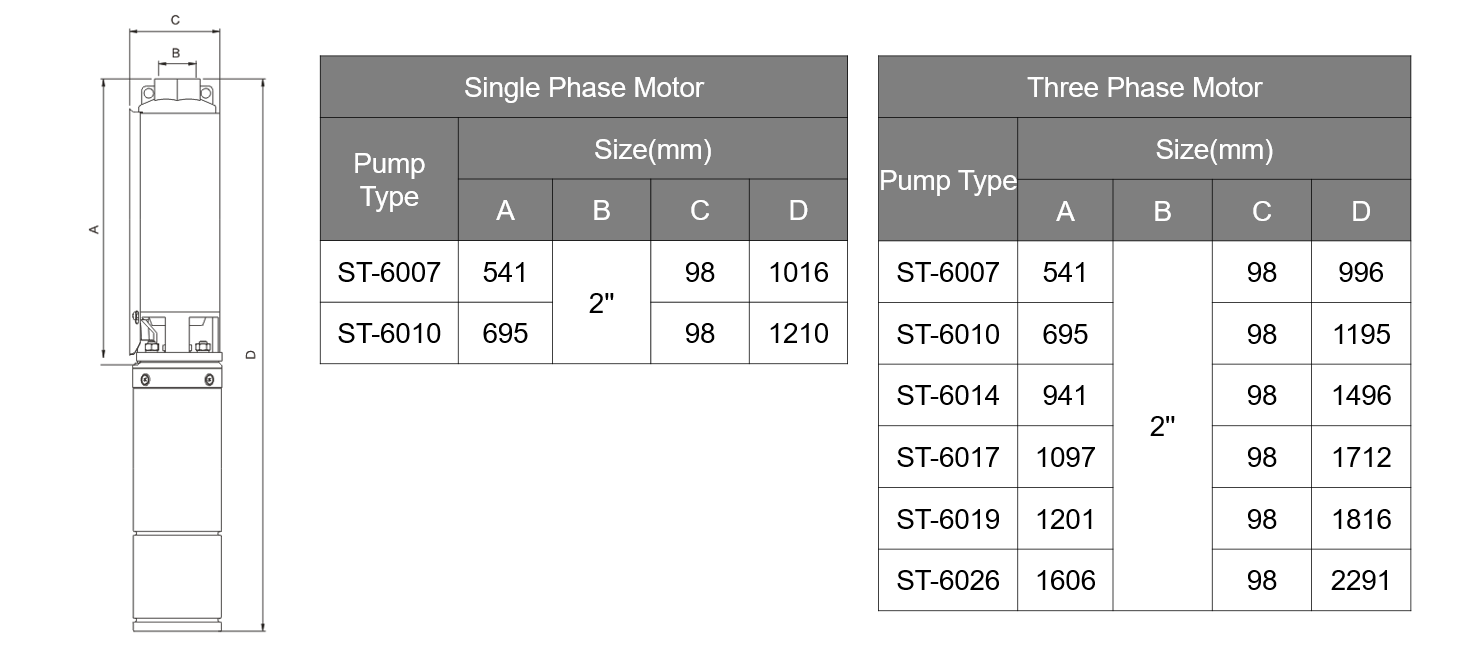

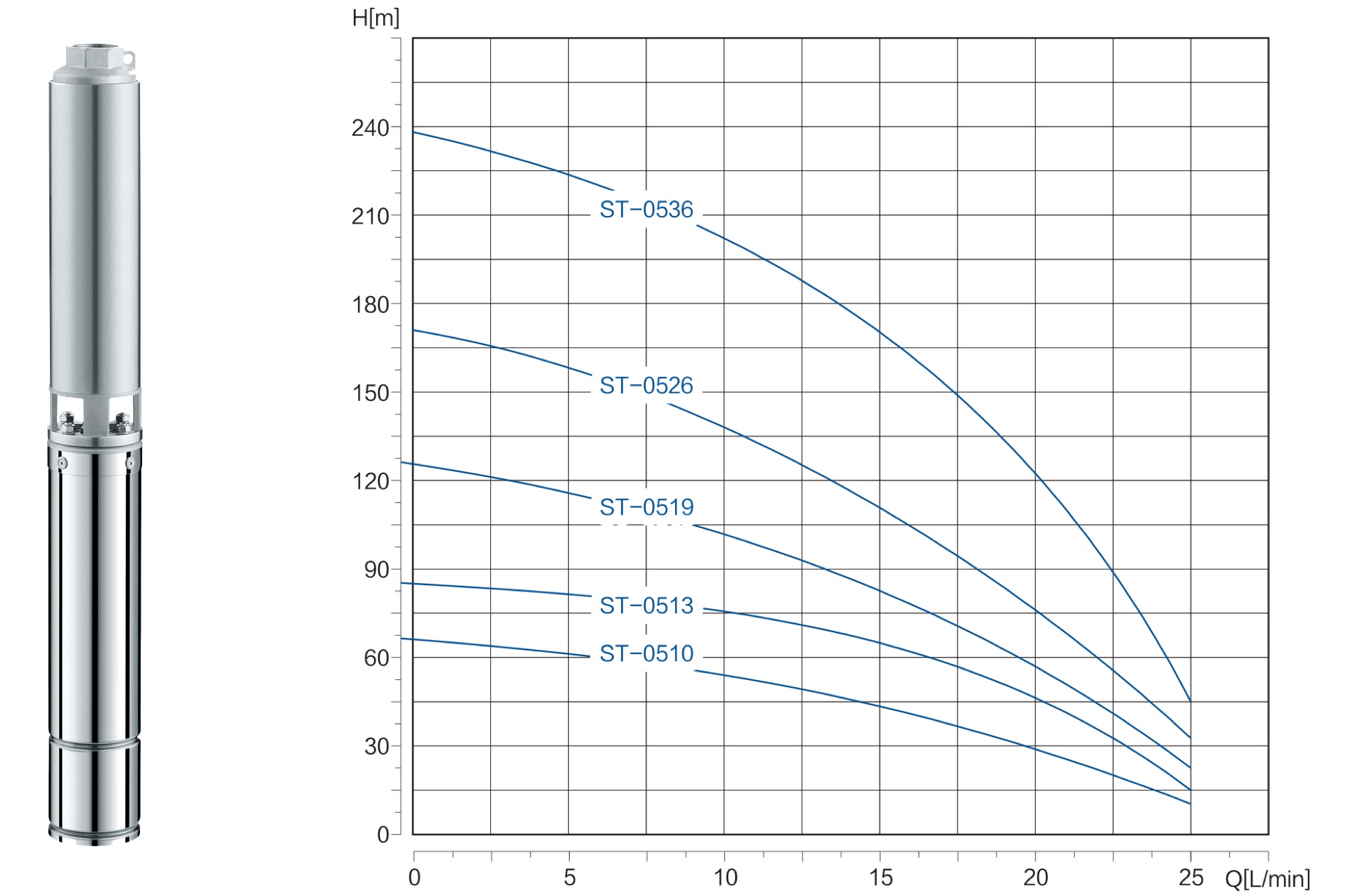

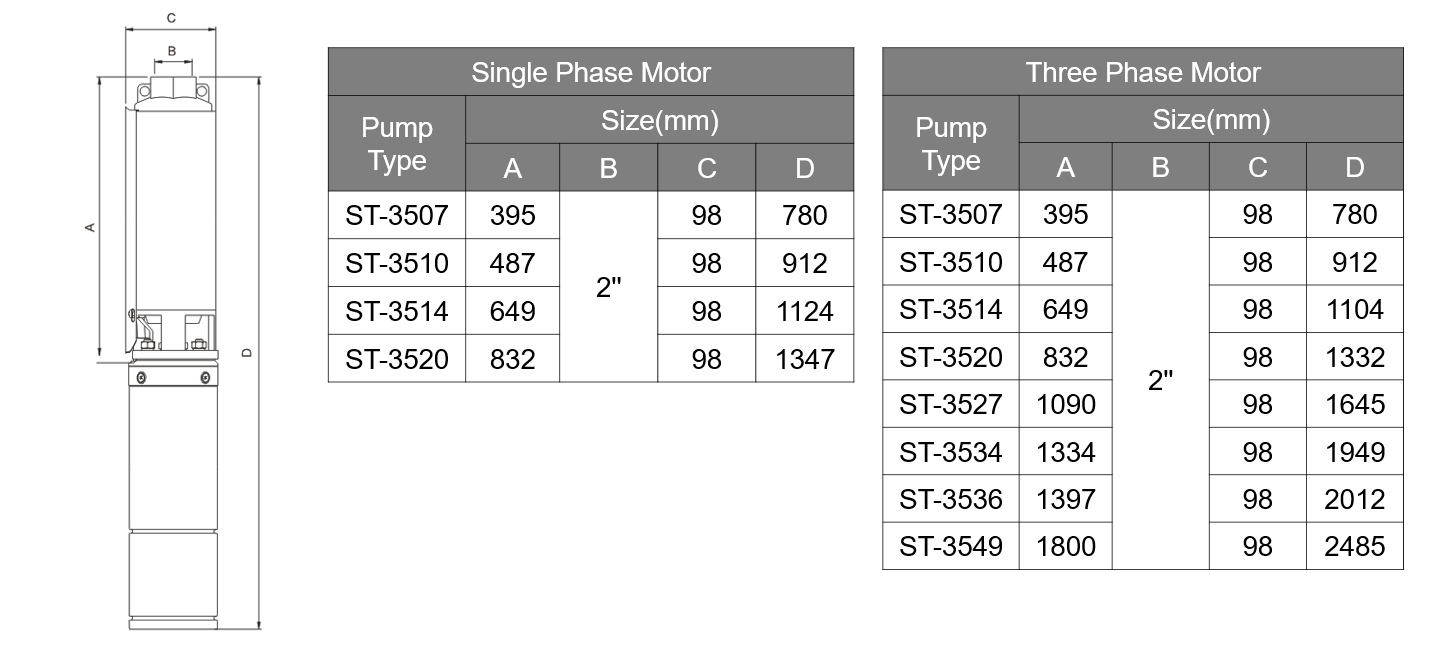

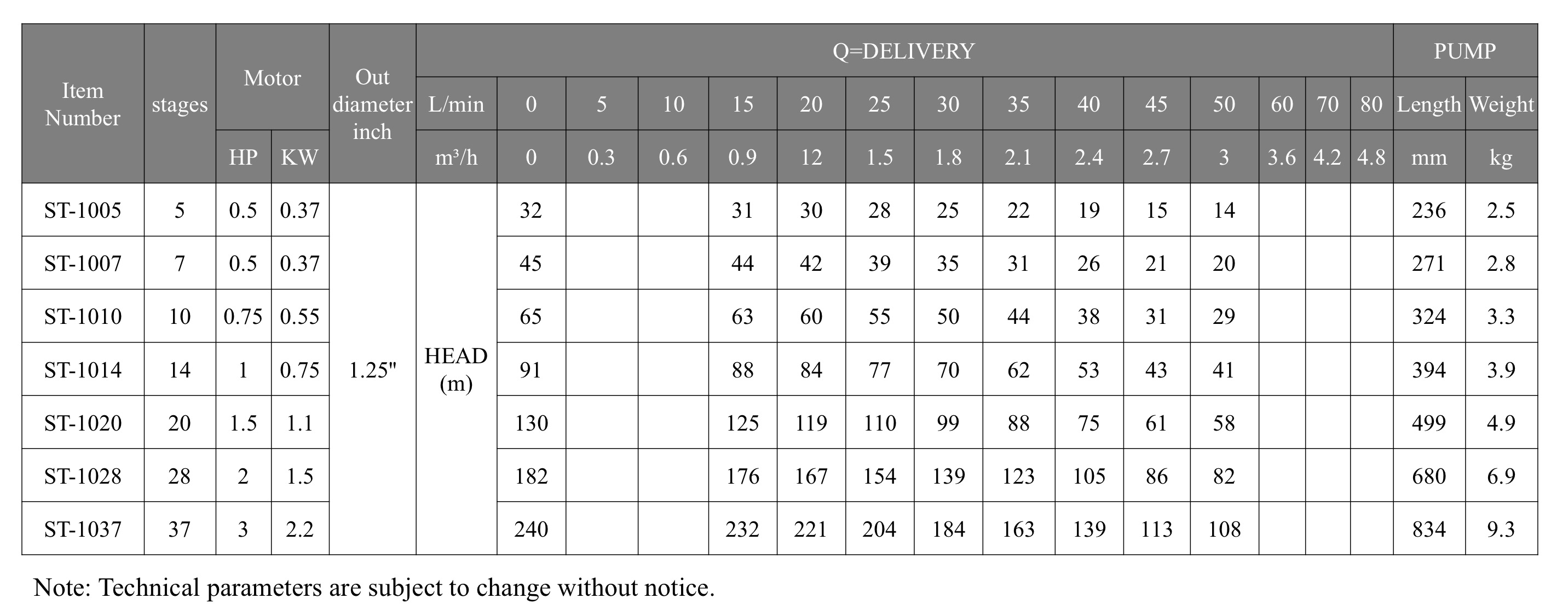

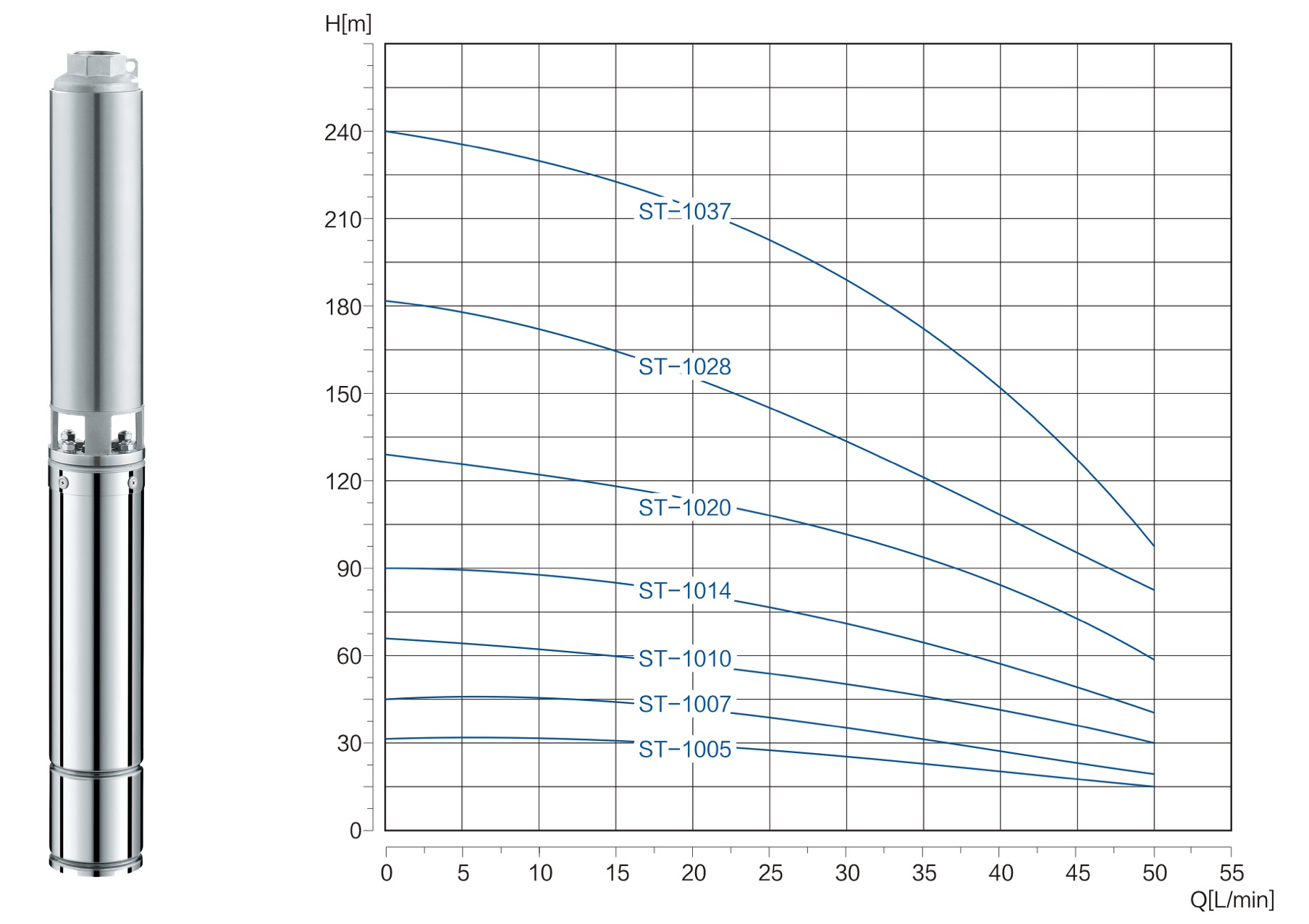

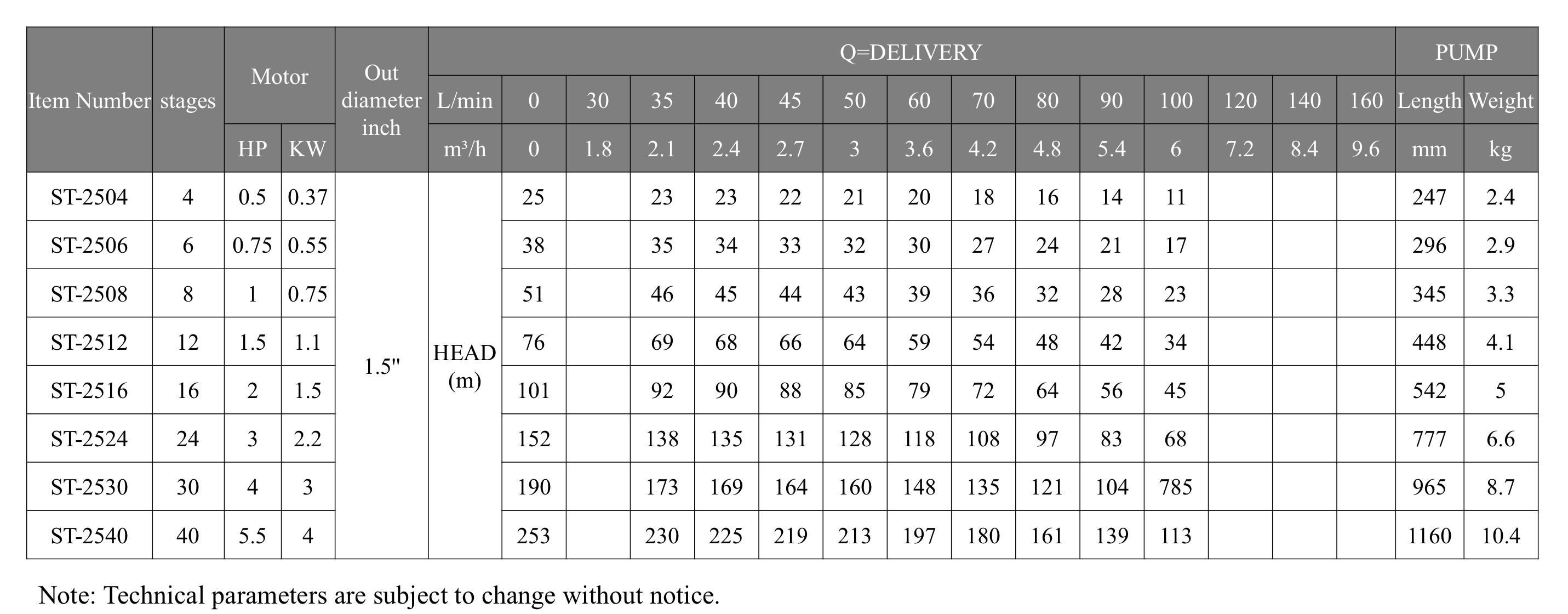

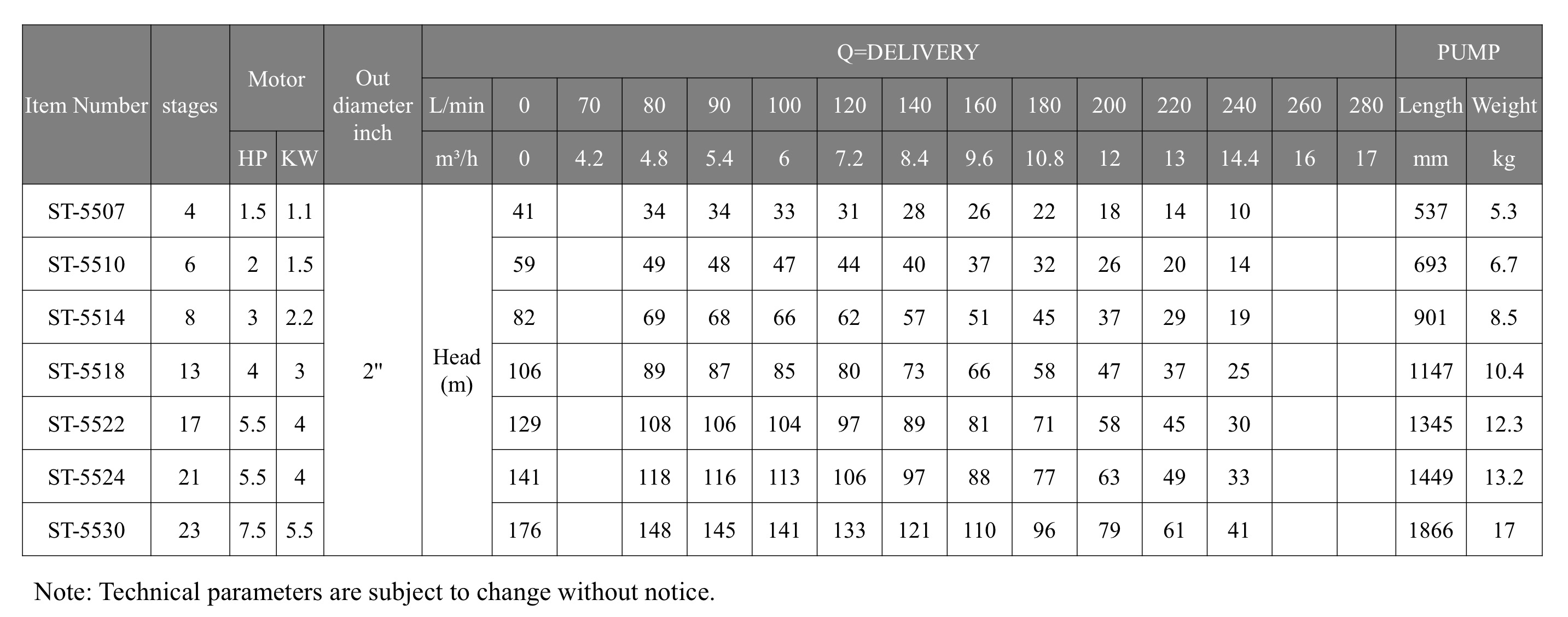

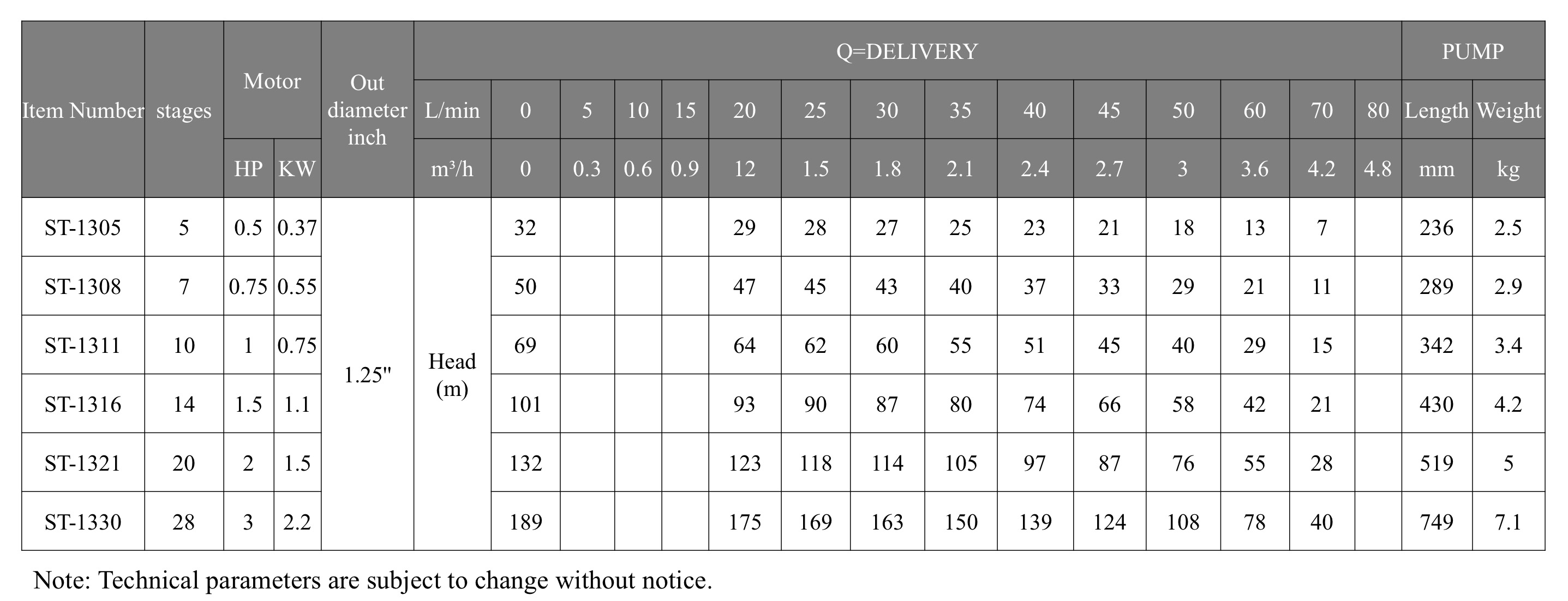

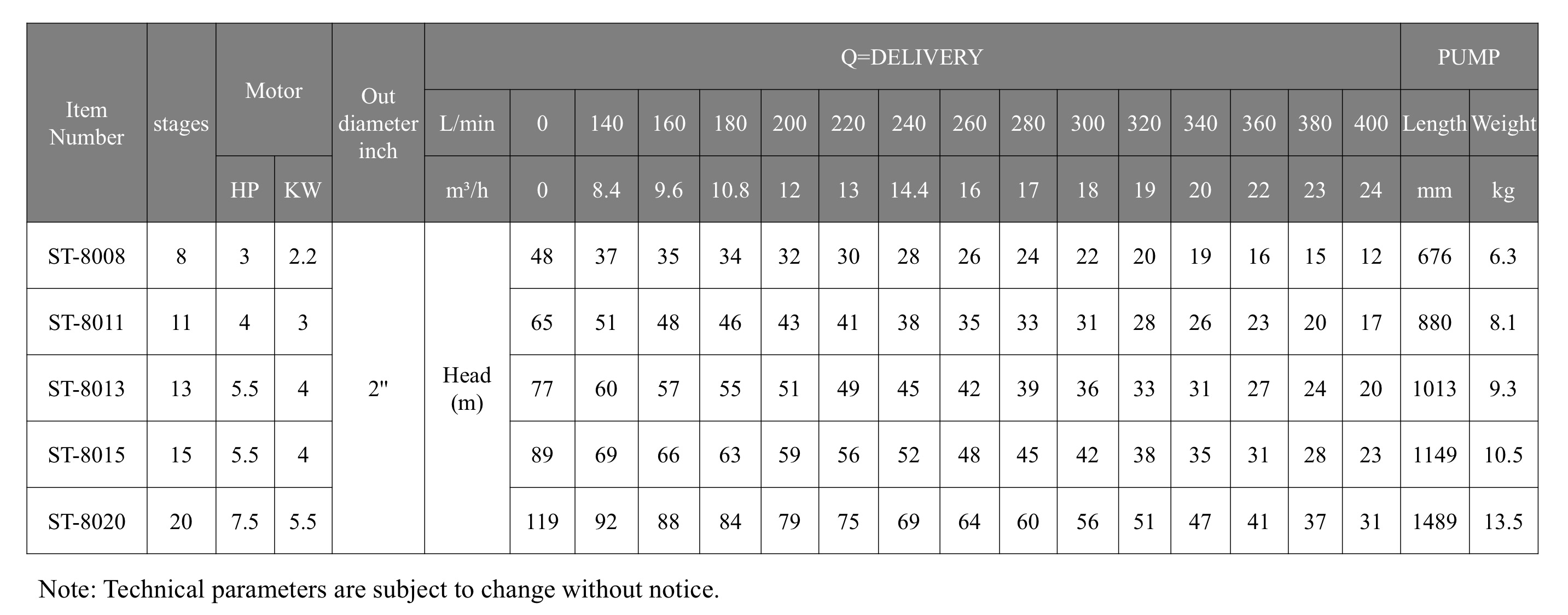

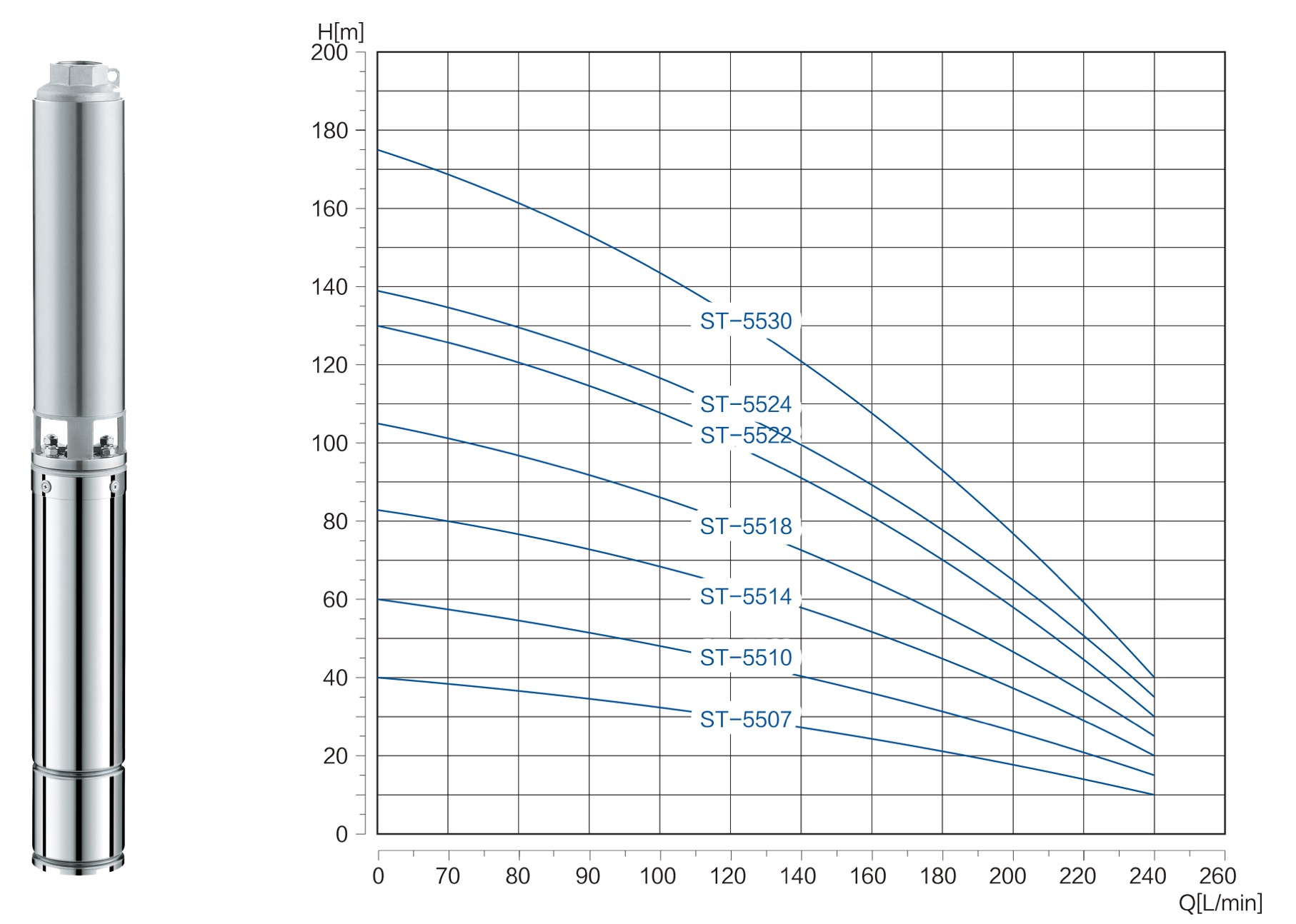

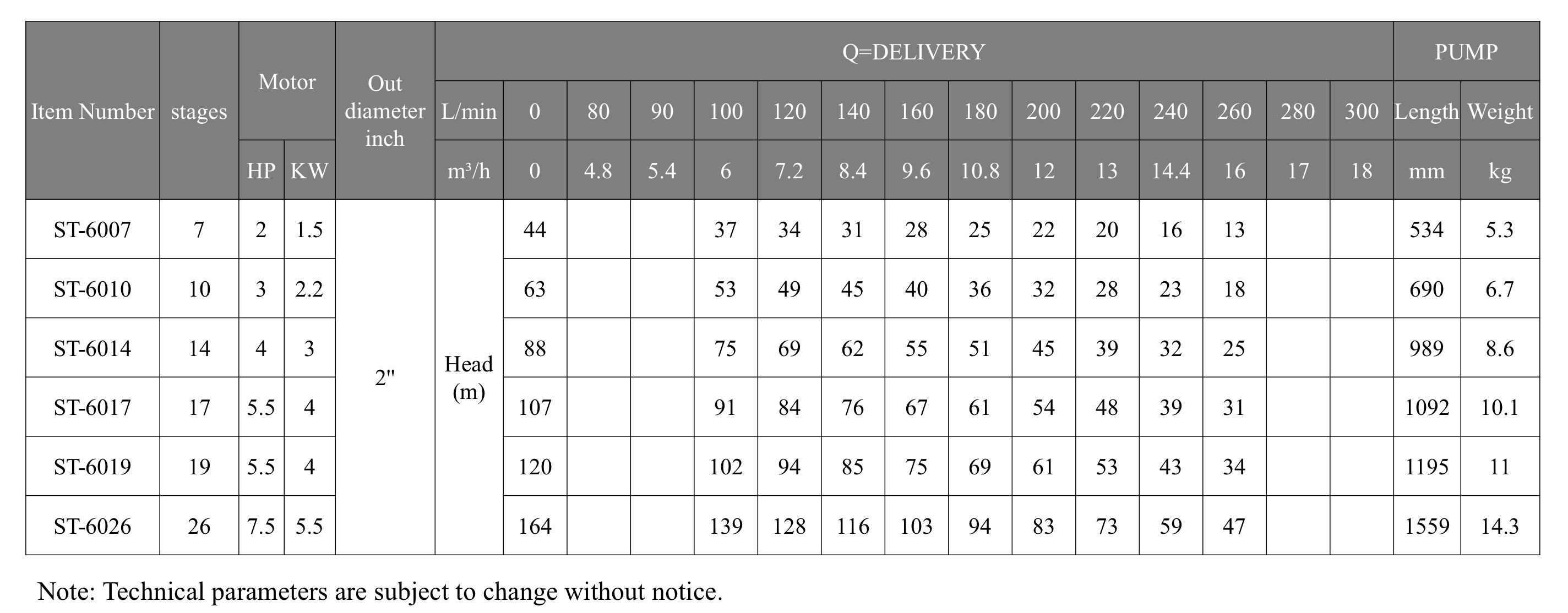

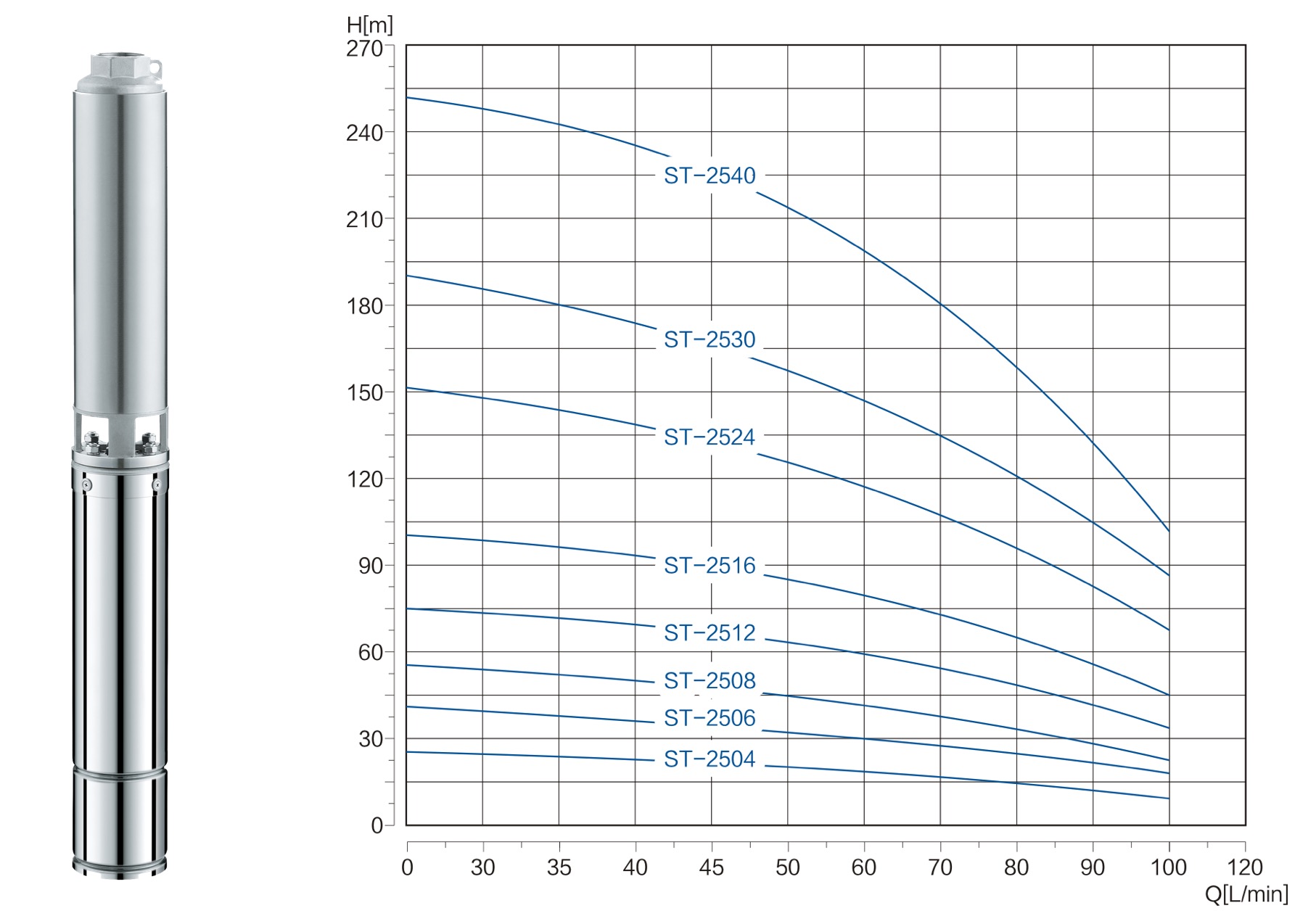

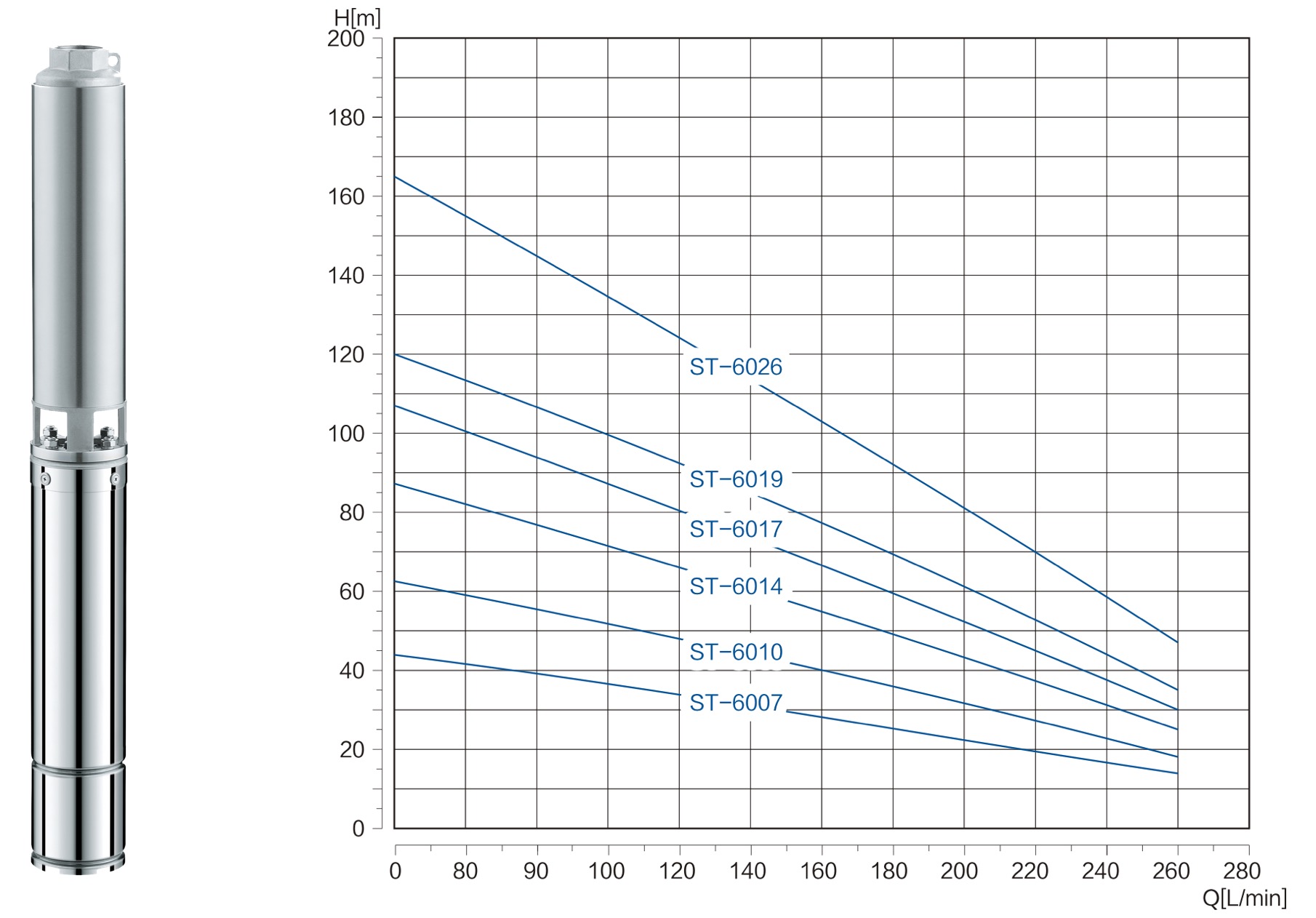

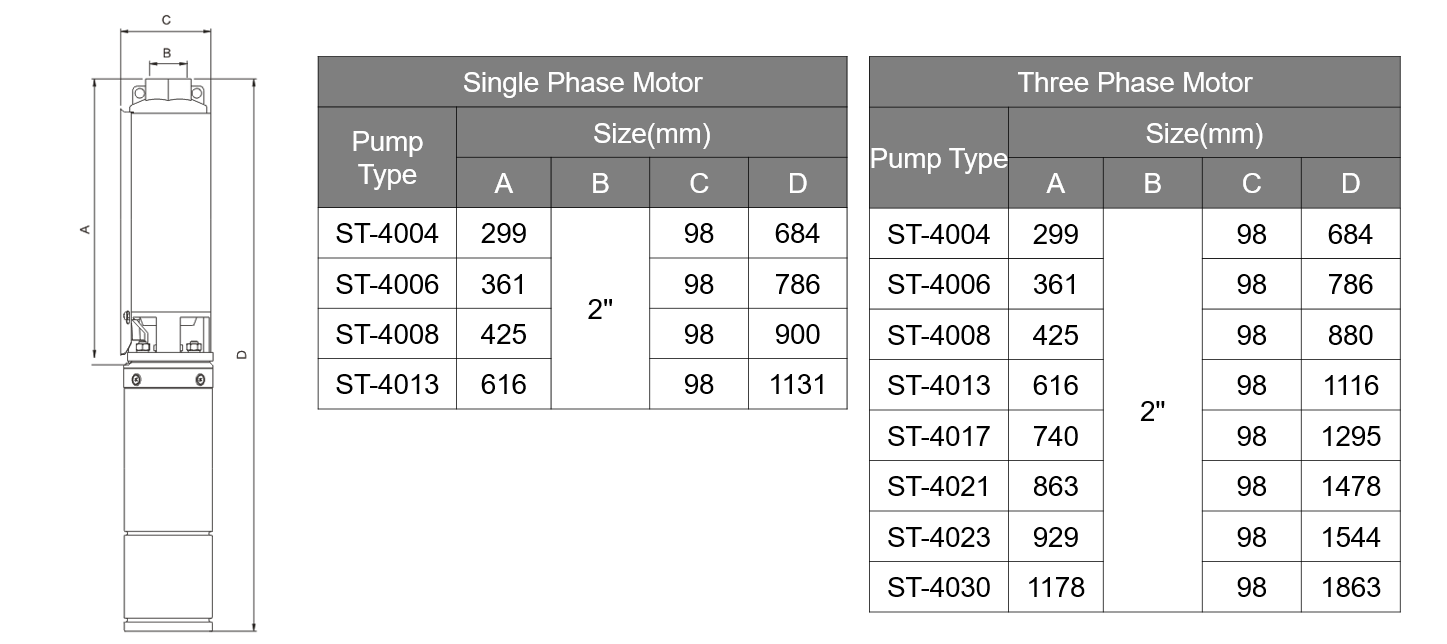

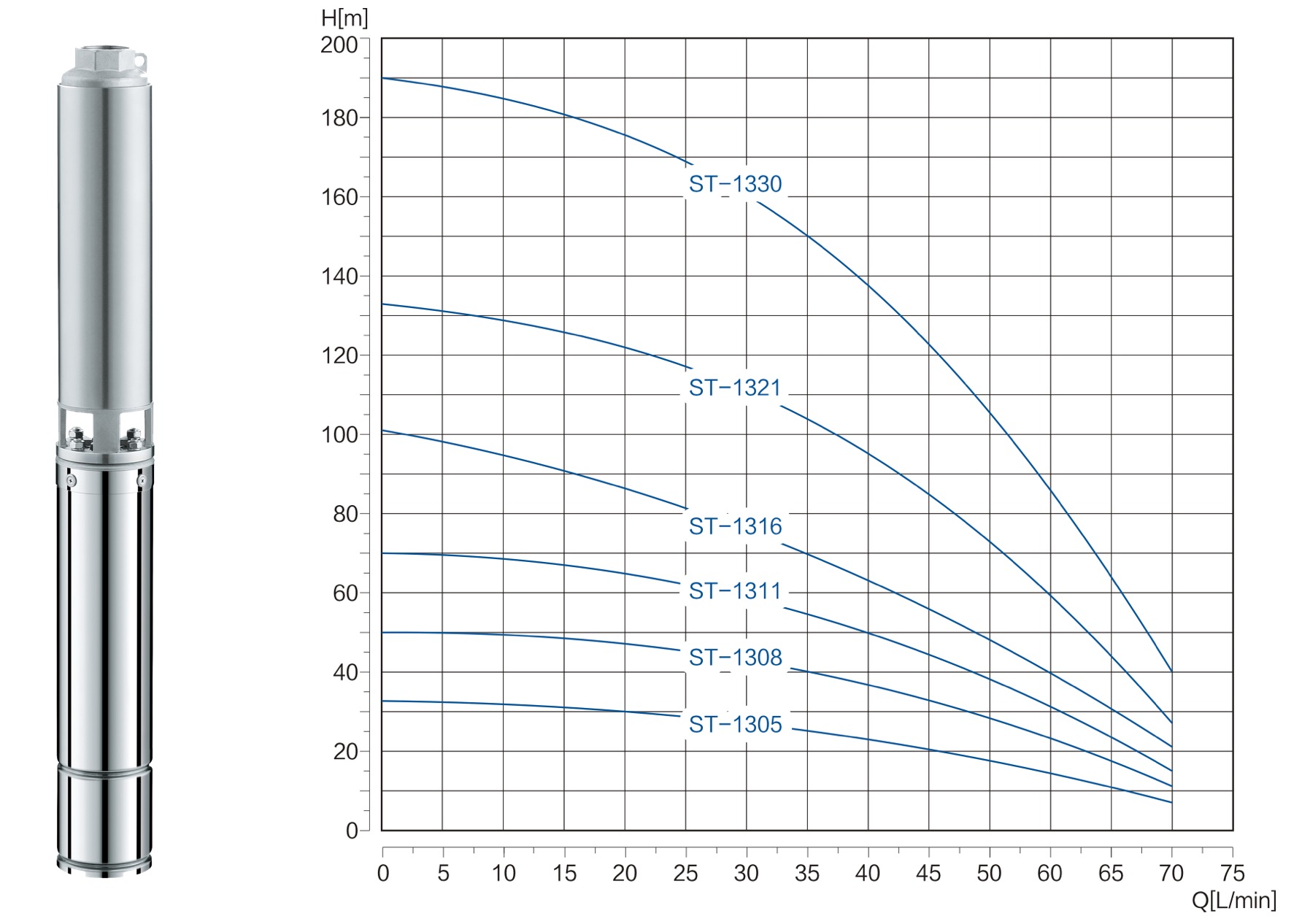

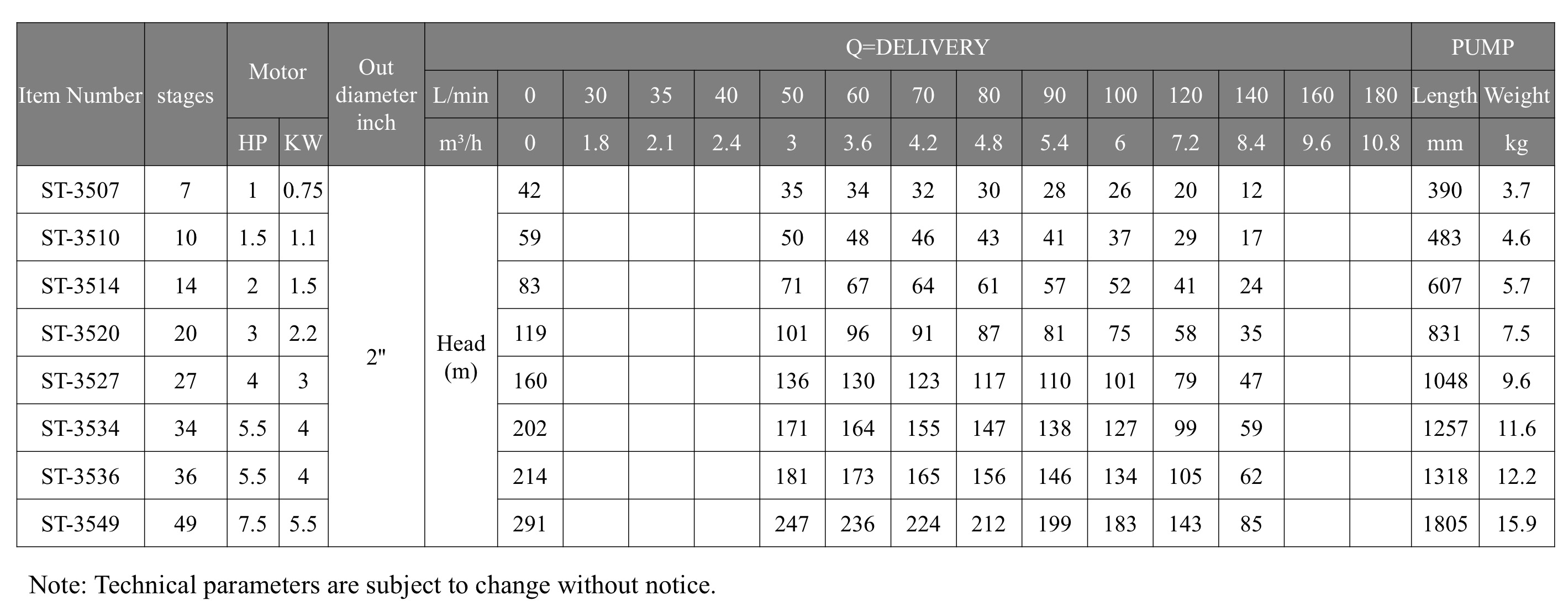

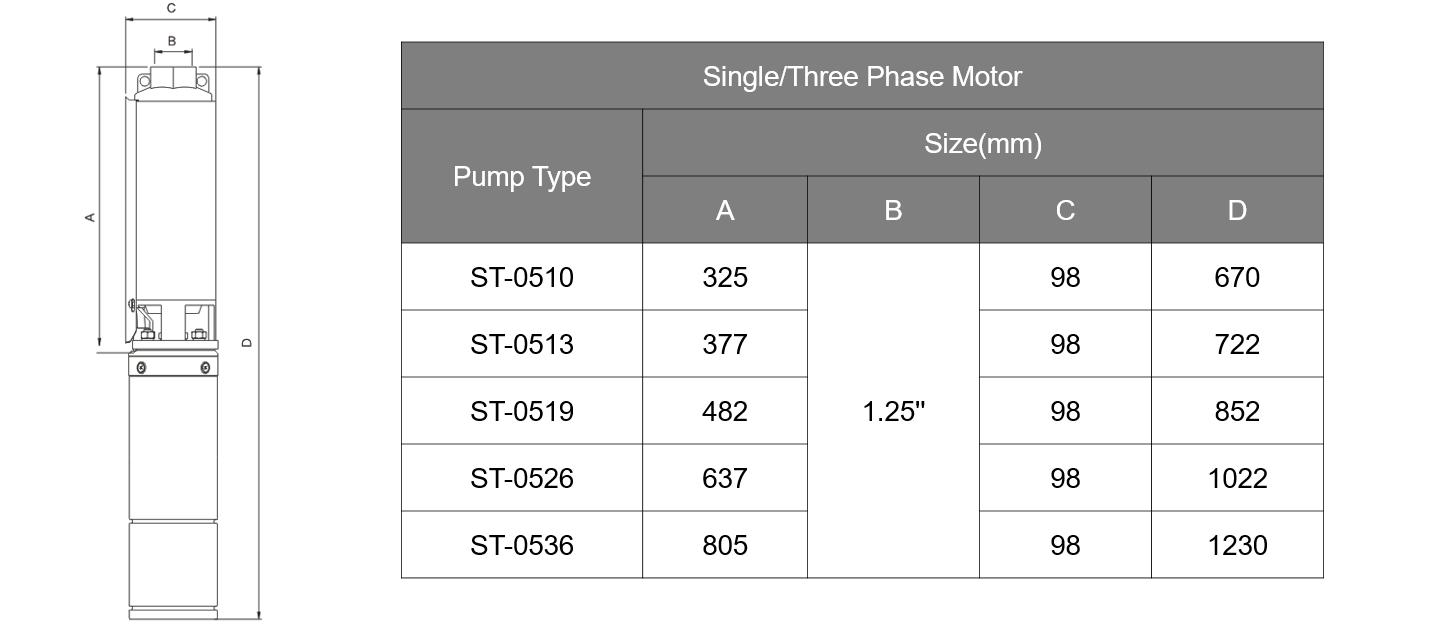

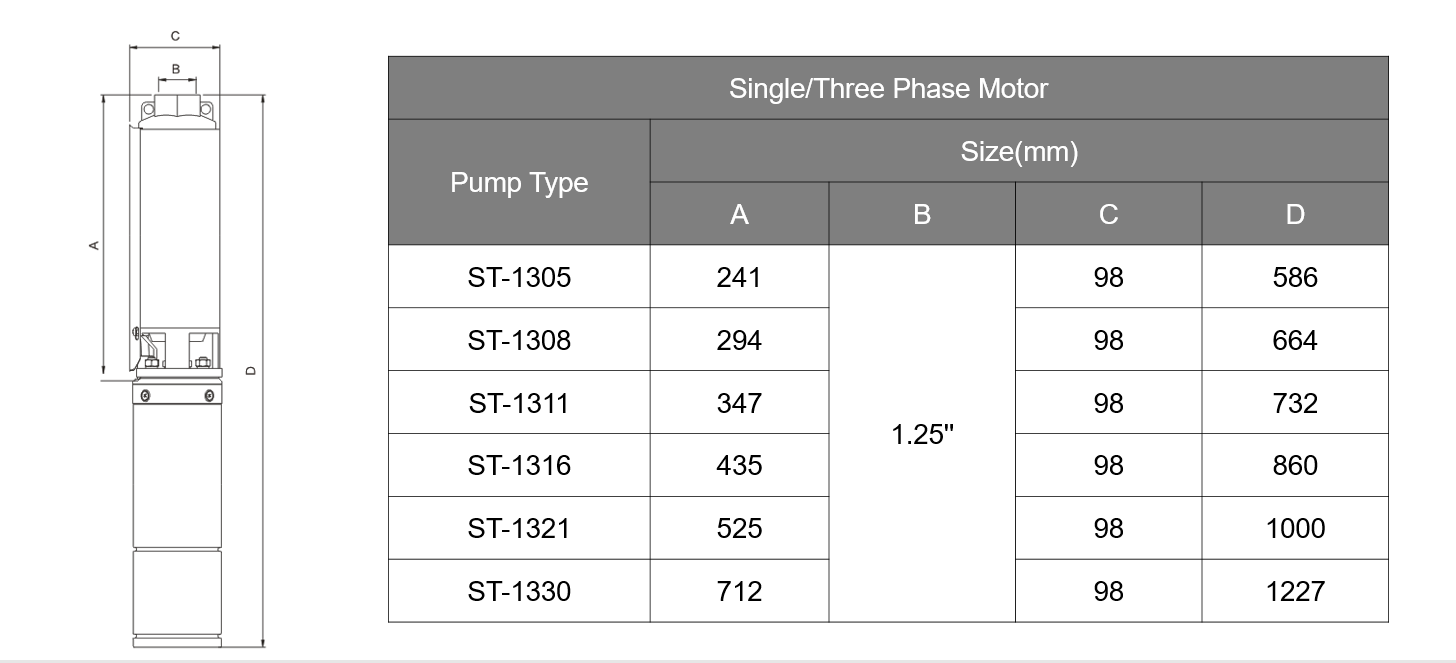

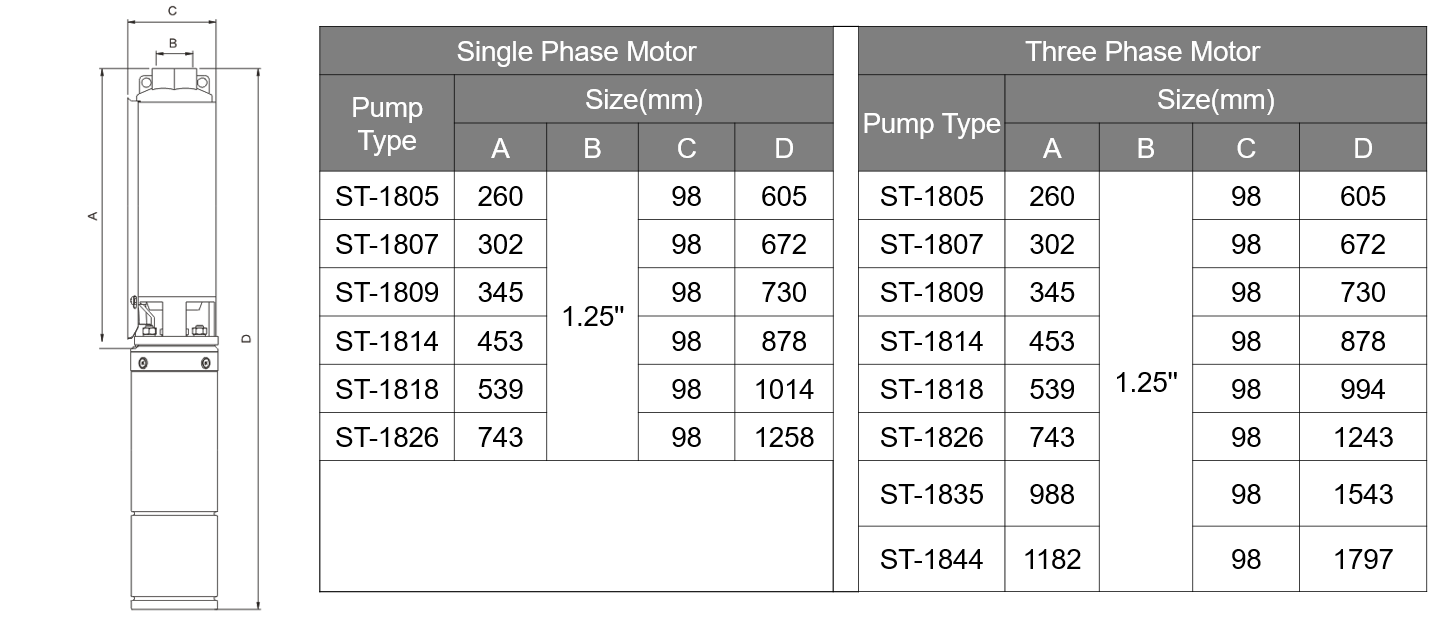

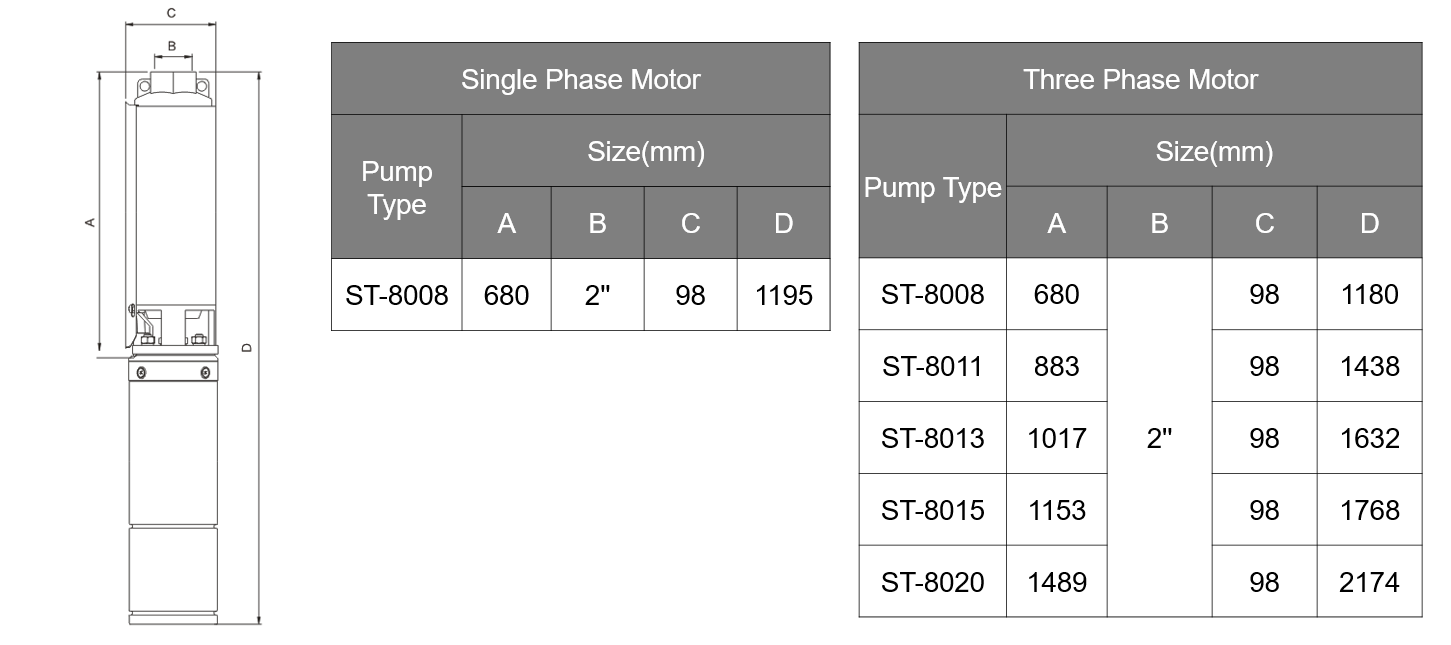

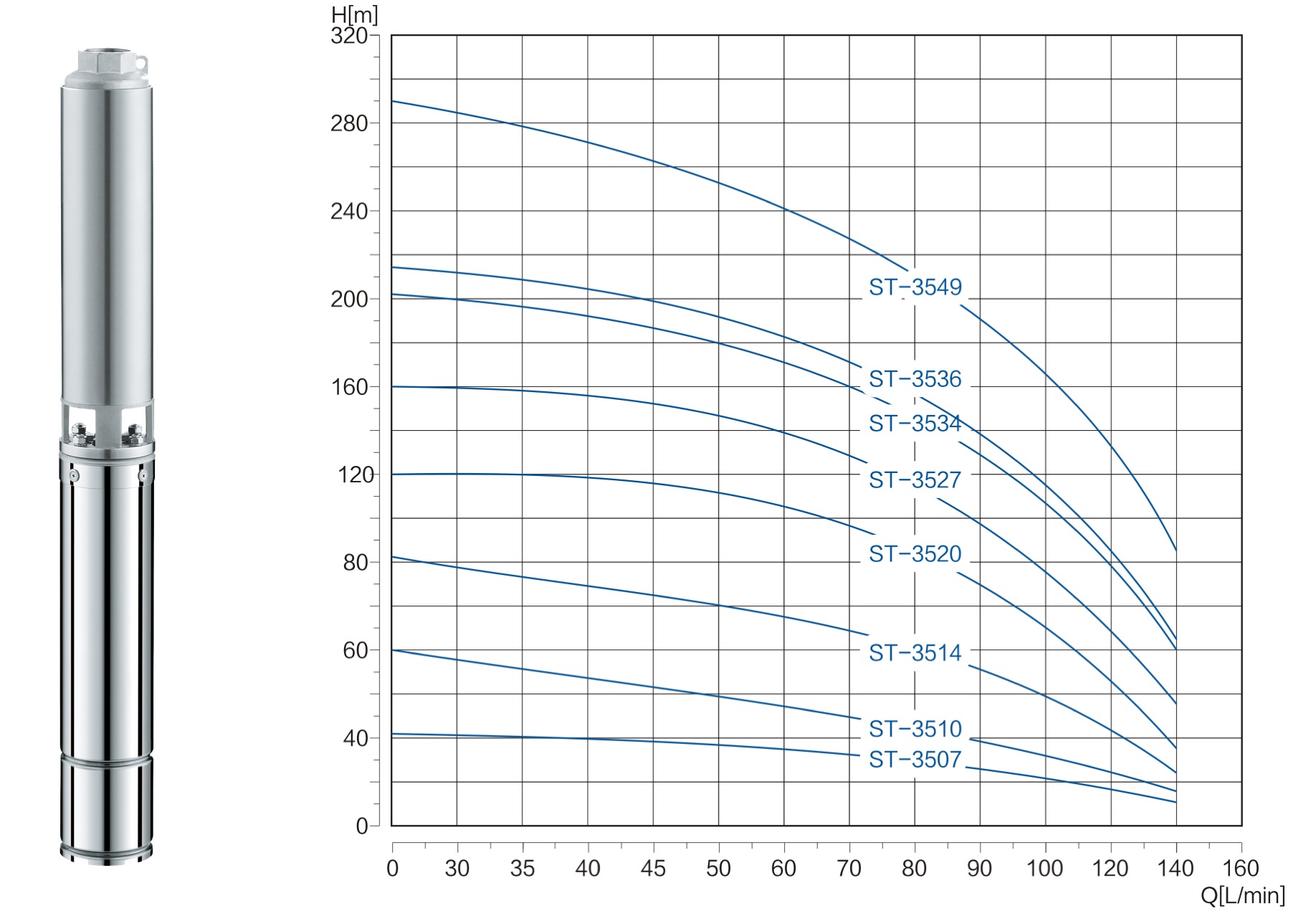

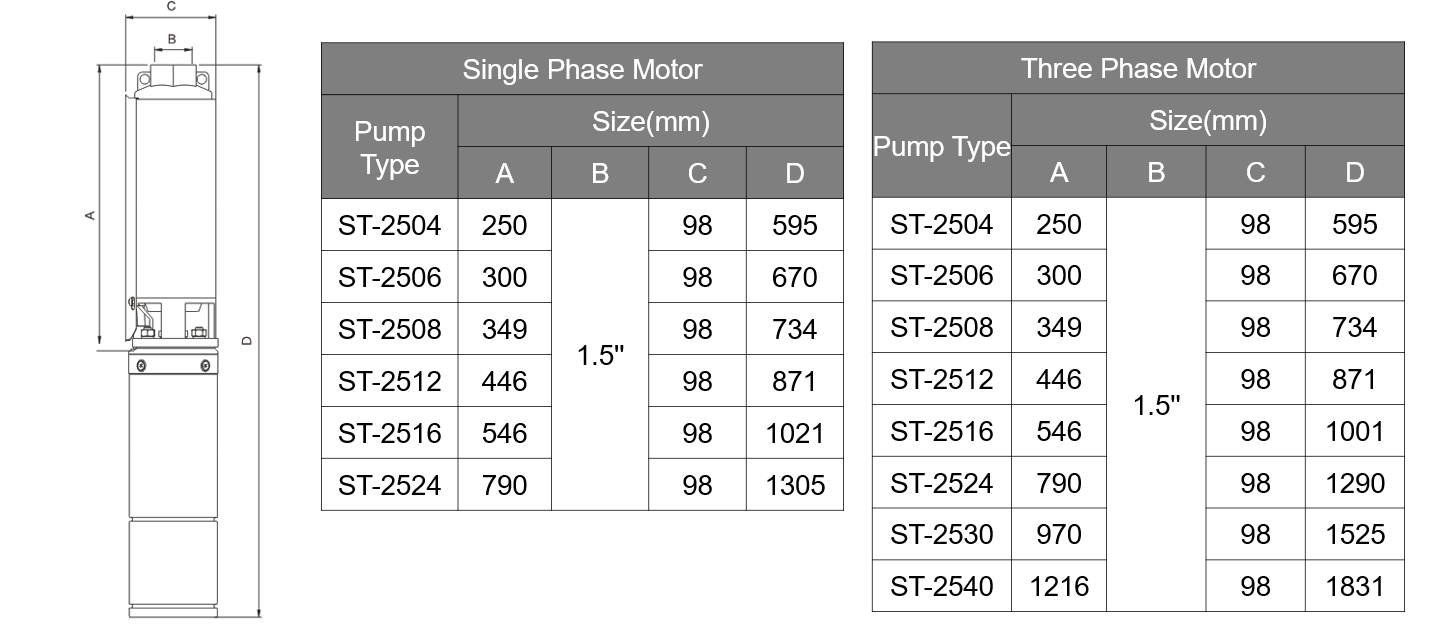

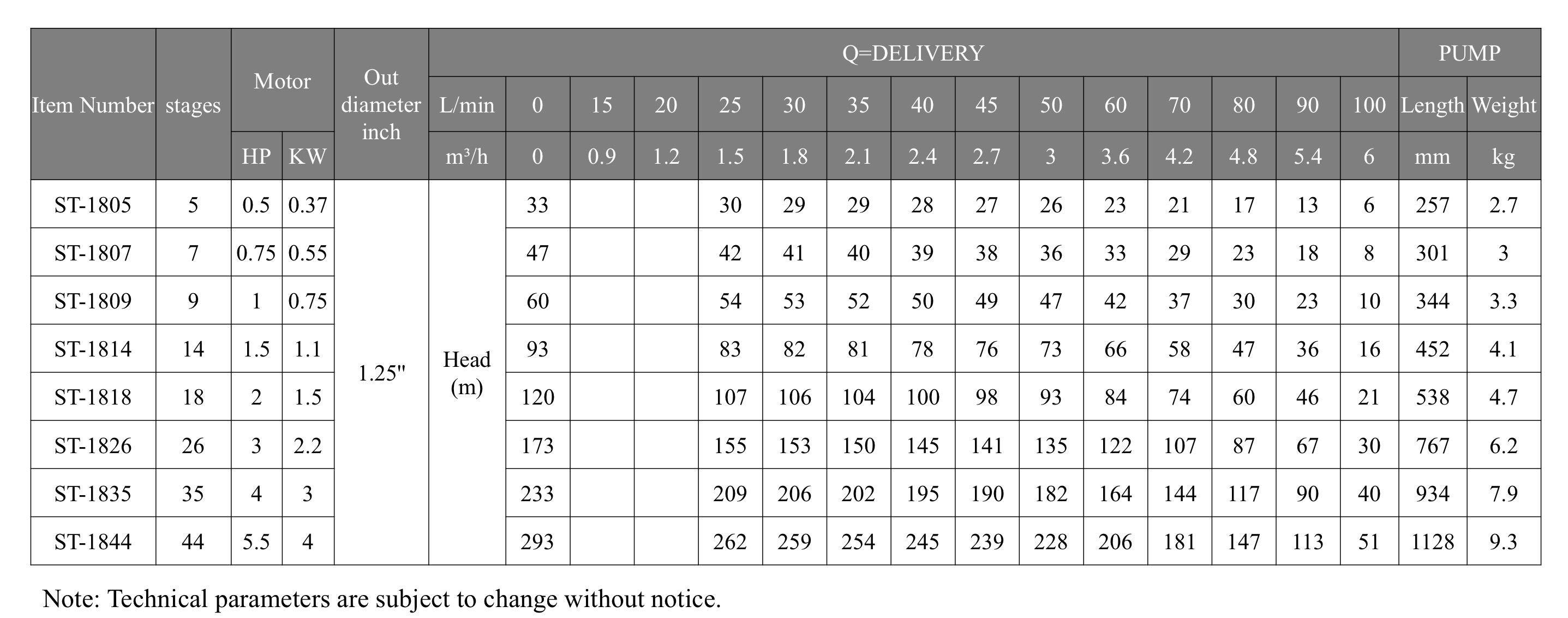

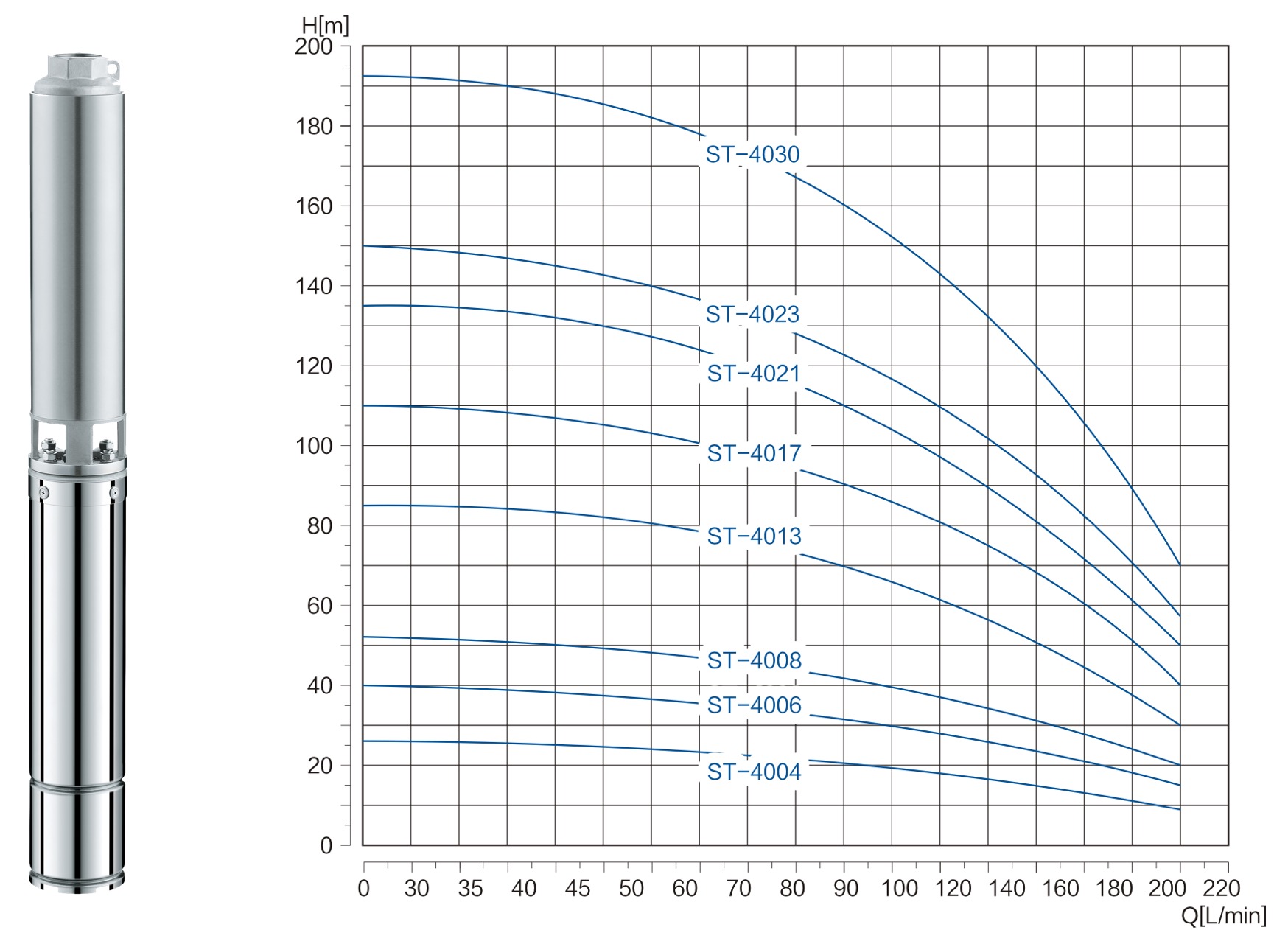

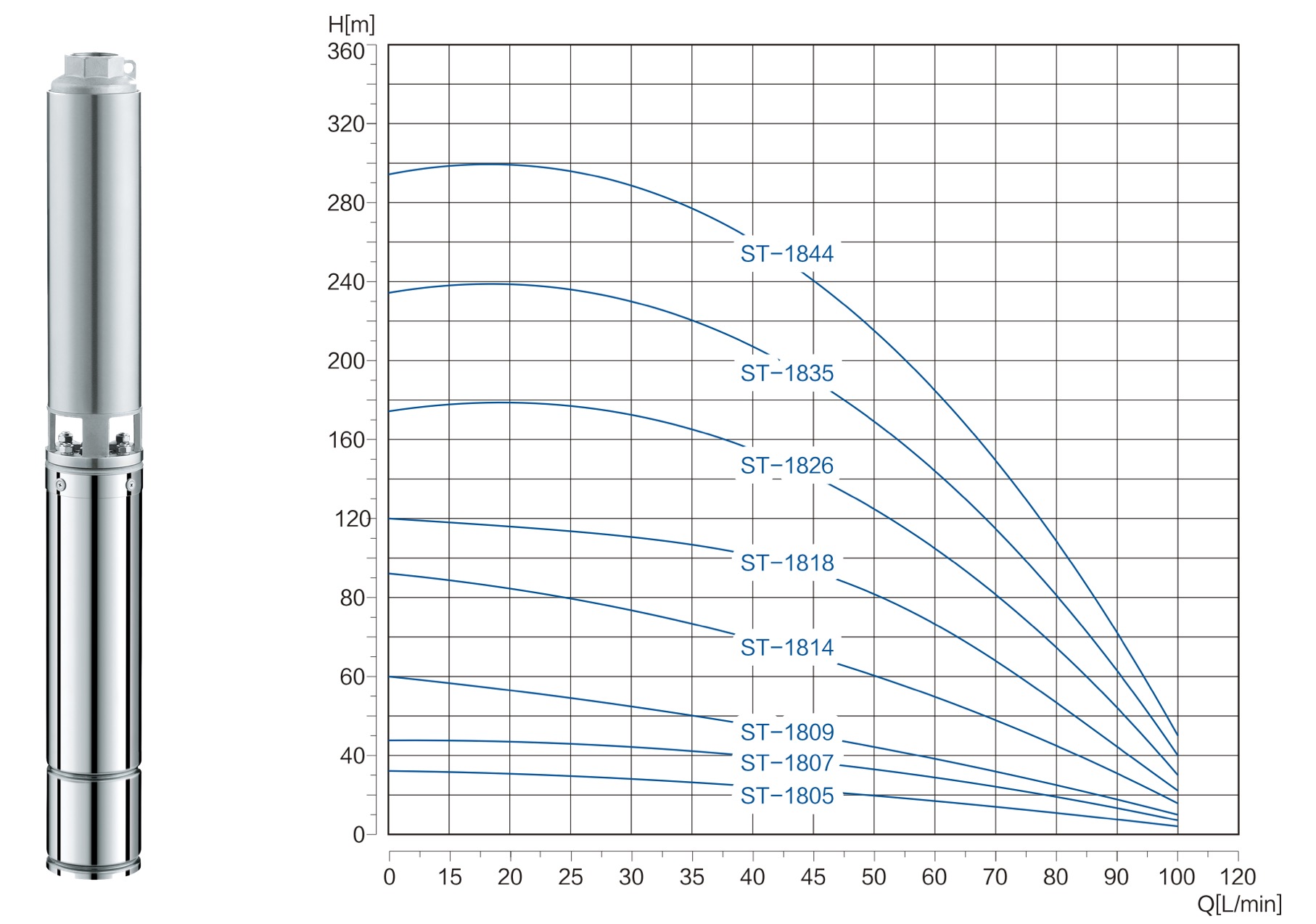

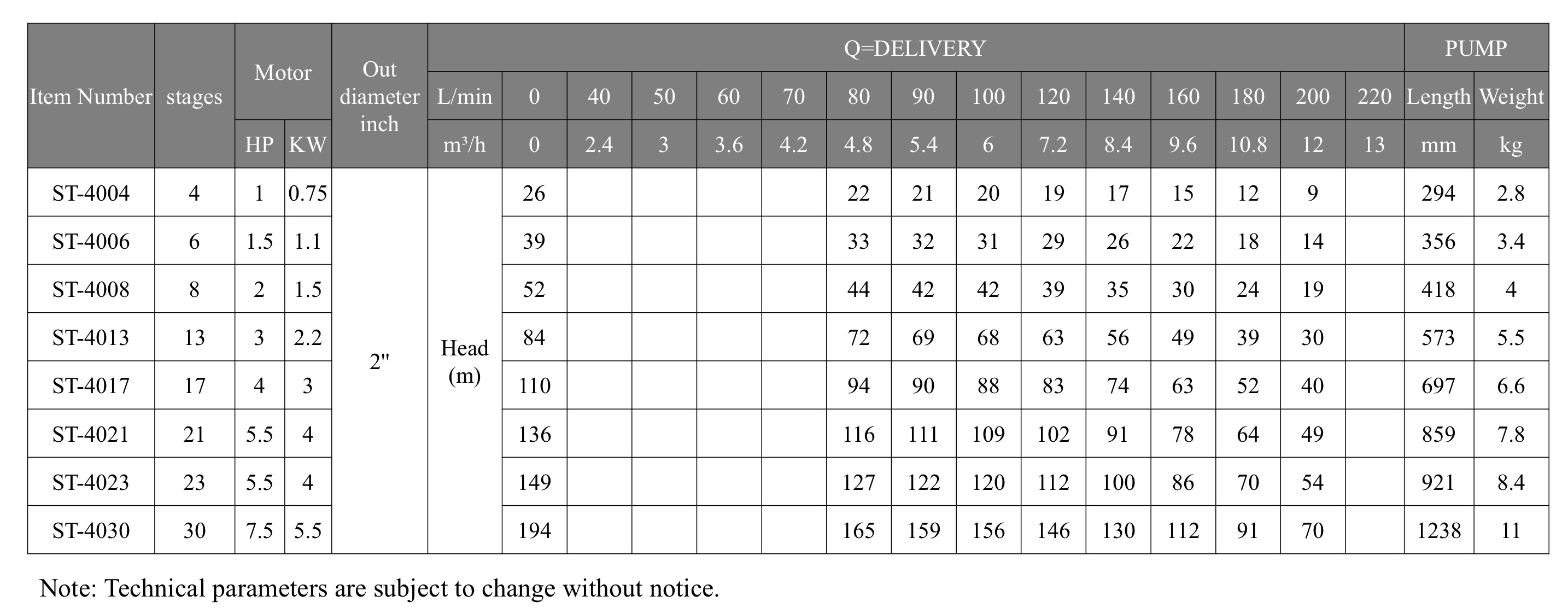

2、Parameter Center
