6′′ SR Series

C6X Series Jaw Crusher



6´´ SR Series POM for impeller, reinforced PC for cover plate and stainless steel for diffuser, greatly improving the wear resistance and sand resistance.

PDF Download send e-mail sales@jinbapump.com

Chat Online
Leave Message


1、Performance characteristics

1.1 High-grade Stainless steel for casing of motor and pump, shaft coupling, fastener, etc, elegant appearance, strong decay resistance, outstanding durability；
1.2 The motor is equipped with angular contact ball bearing at one end, bearing large axial force；
1.3 Shaft coupling and flange meet “NEMA” standard；
1.4 POM for impeller, reinforced PC for cover plate and stainless steel for diffuser,  greatly improving the wear resistance and sand resistance；
1.5 High-density cast iron outlet and inlet, with electrophoretic treatment, attractive and practical, cost-effective；
1.6 Plug type cable joint, high insulation, high temperature resistance, to ensure the sealing, and easy to install.
2.Parameter center

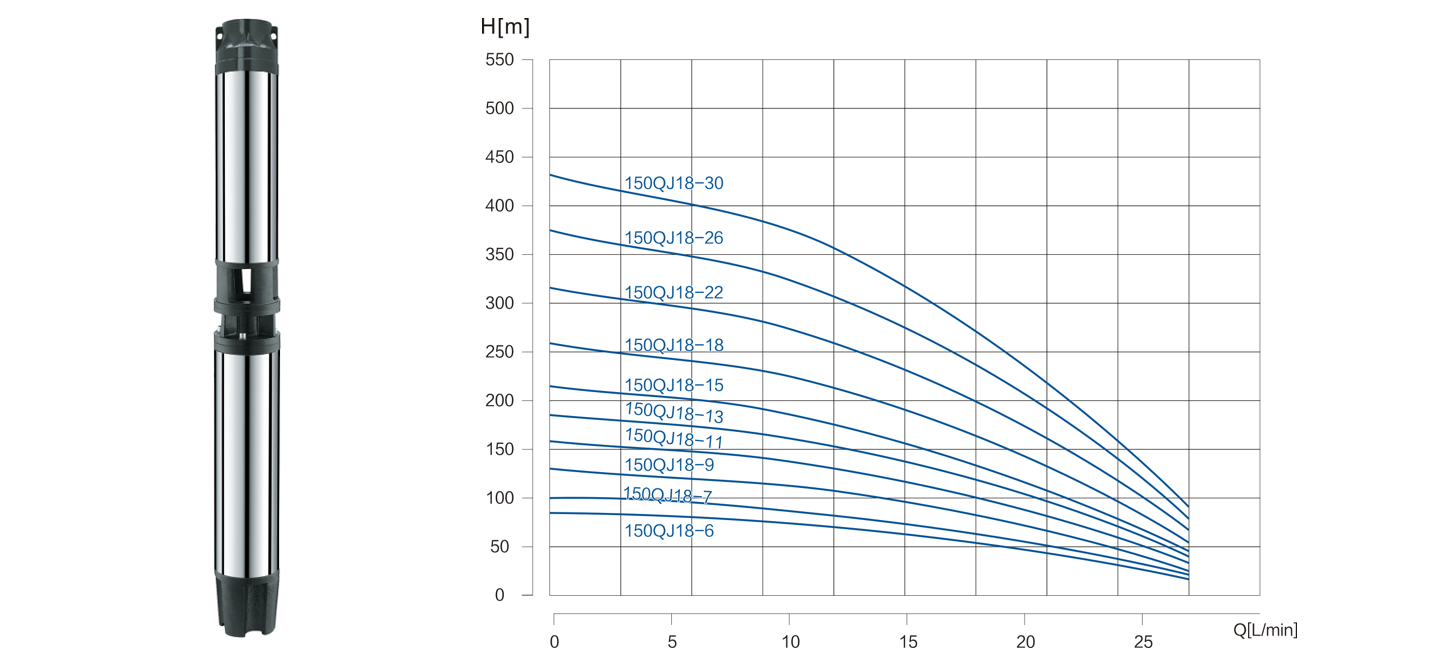

  • 6SR18 Performance curve
