4′′ High-efficient and Energy-saving

1、Working Principle

   High-energy rare earth permanent magnets as excitation mechanism；With permanent magnet brushless motor；Square wave principle；Electronic commutation replaces mechanical commutation；High density programmable logic device technology.

2、Performance Characteristics

• Performance characteristics

2.1 4′′  deep well pump’s rated flow can reach 80m3/h；

2.2 Single phase AC voltage 160-250V, Three phase AC voltage 320-450V；

2.3 High speed (6000 rpm)；

2.4 It can be switched between 50 and 60Hz, Power source can be solar, gasoline engine, diesel engine, household electricity；

2.5 Water shortage protection and auto restart after 10 minutes.

• Competitive Advantage

2.6 Size smaller, weight less, lower cost of drilling well and installation；

2.7 Jinba specially designed the impeller, to meet the conditions of high-speed run, achieving high lift, light load and high efficiency；

2.8 The outlet is equipped with stainless steel check valve,to effectively prevent the impact of water hamme；

2.9 The product has the functions of constant pressure and constant flow water supply, intelligent operation,remote reporting failure, etc;

2.10 Plug type cable joint, high insulation, high temperature resistance, to ensure the sealing, and easy to install.

3、Parameter Center

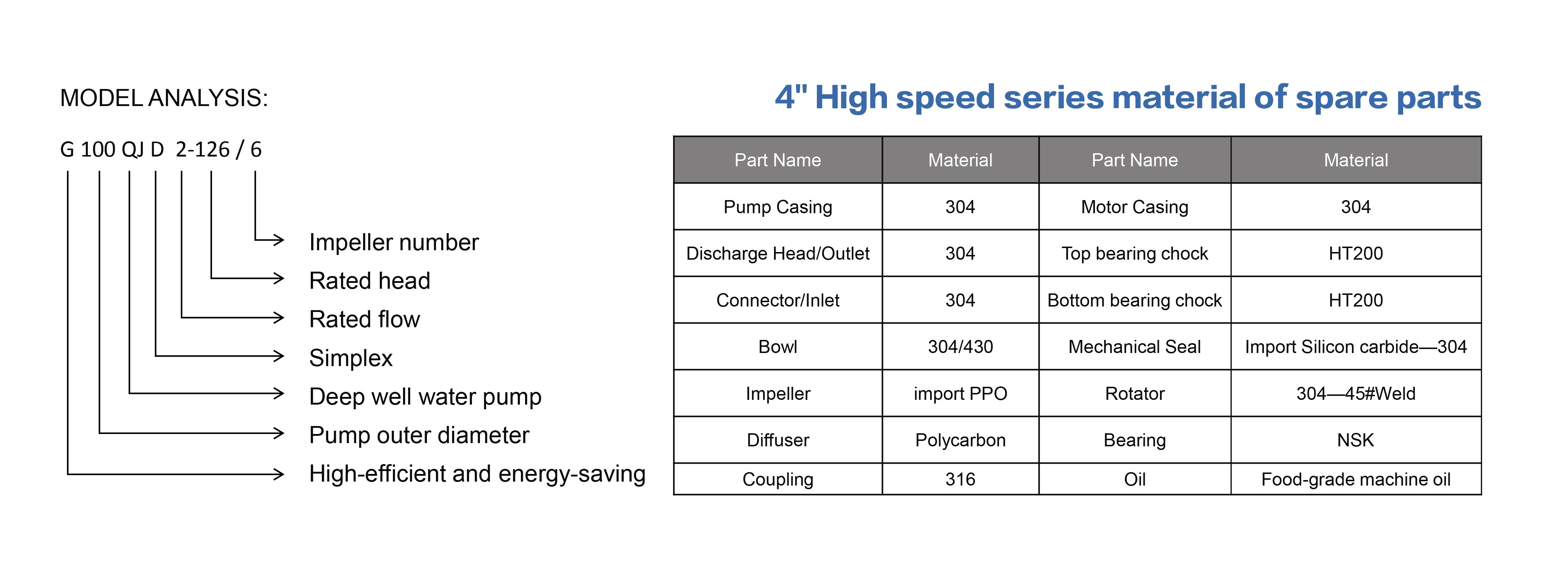

• Model Analysis

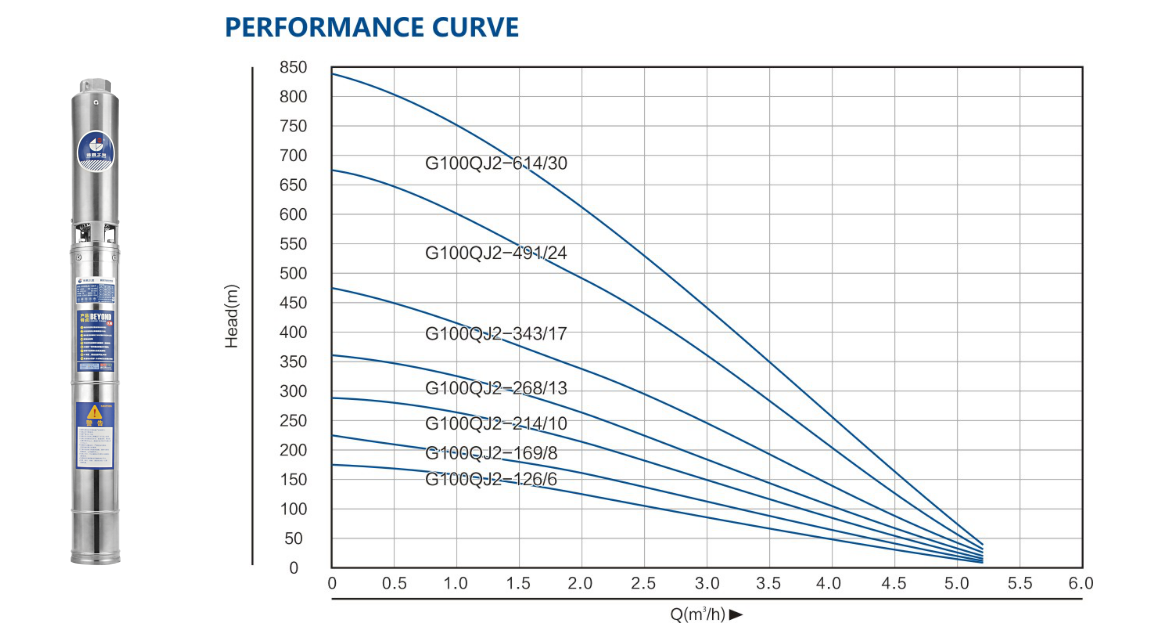

• G100 Series 2 Performance Curve

Note: Technical parameters are subject to change without notice.

• G100 Series 2 Mechanical Parameters

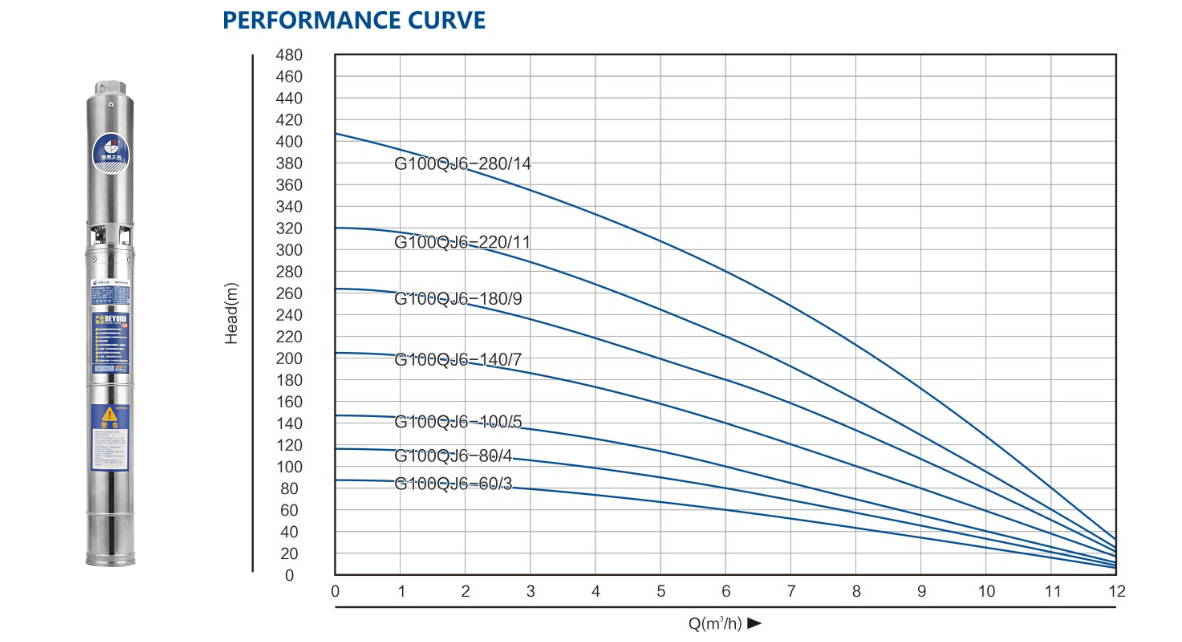

• G100 Series 6 Performance Curve

• G100 Series 6 TECHNICAL DATA

Note: Technical parameters are subject to change without notice.

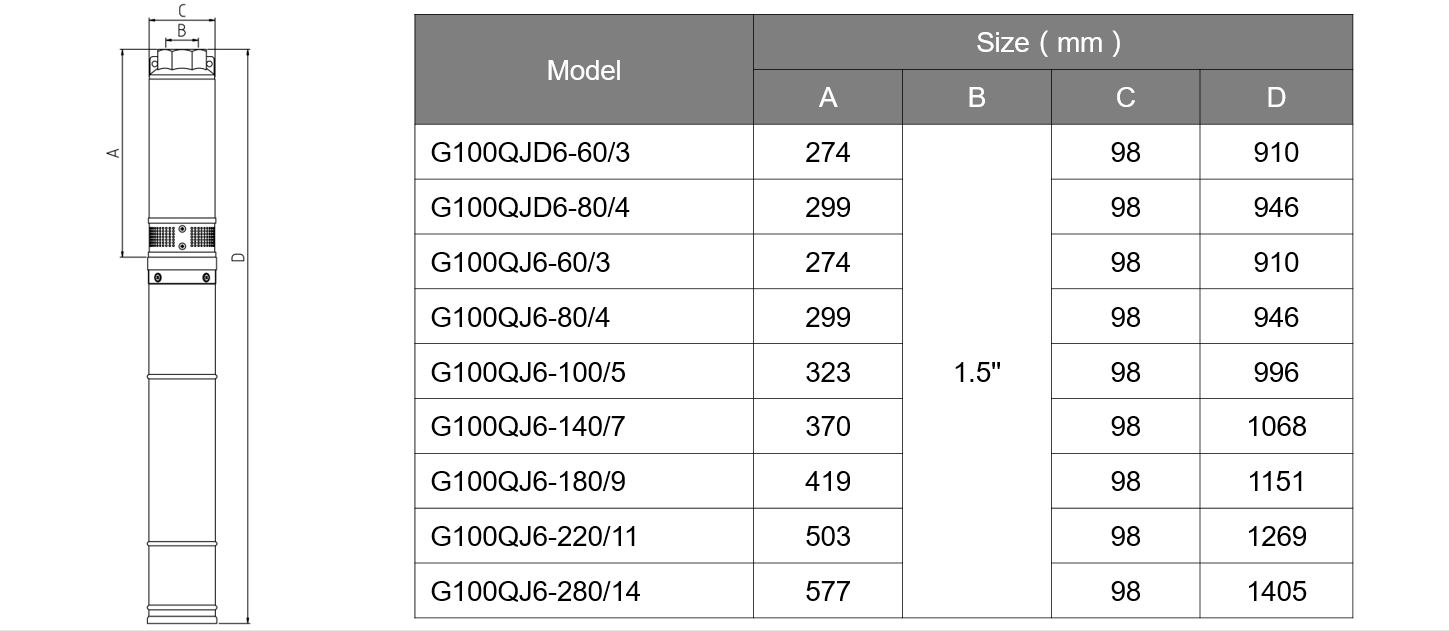

• G100 Series 6 Mechanical Parameters

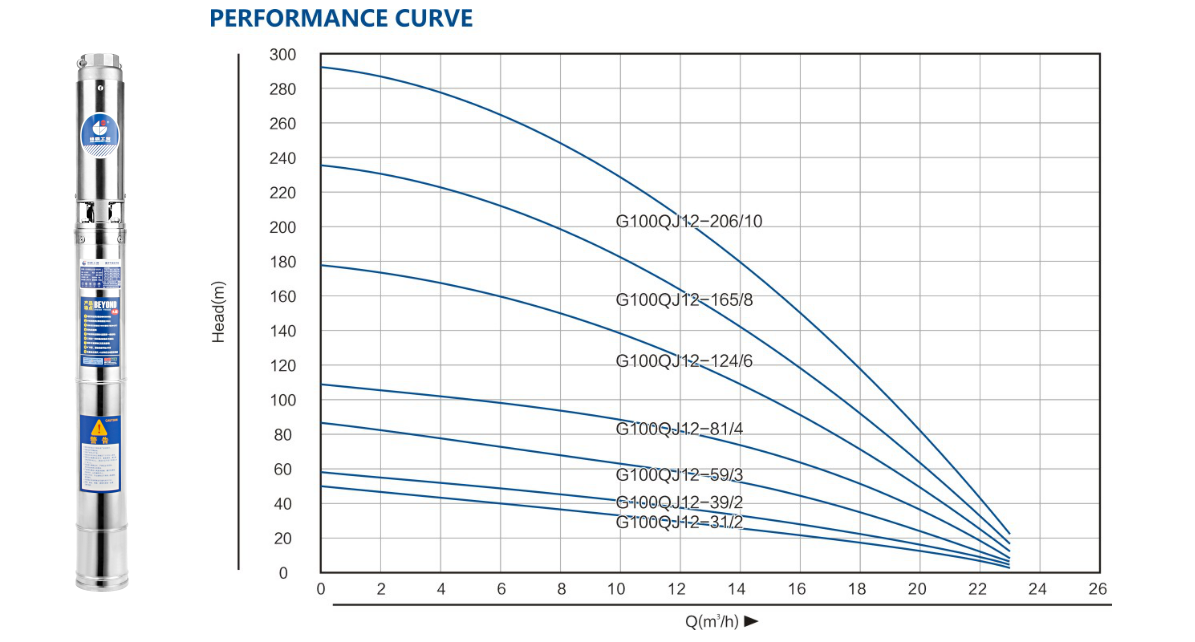

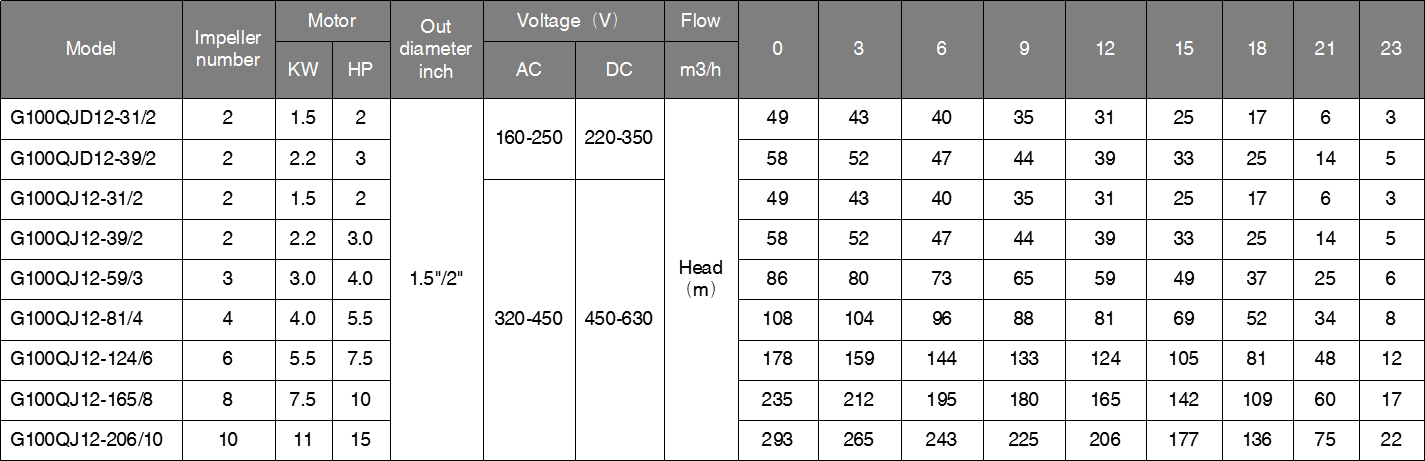

• G100 Series 12 Performance Curve

• G100 Series 12 TECHNICAL DATA

Note: Technical parameters are subject to change without notice.

• G100 Series 12 Mechanical Parameters

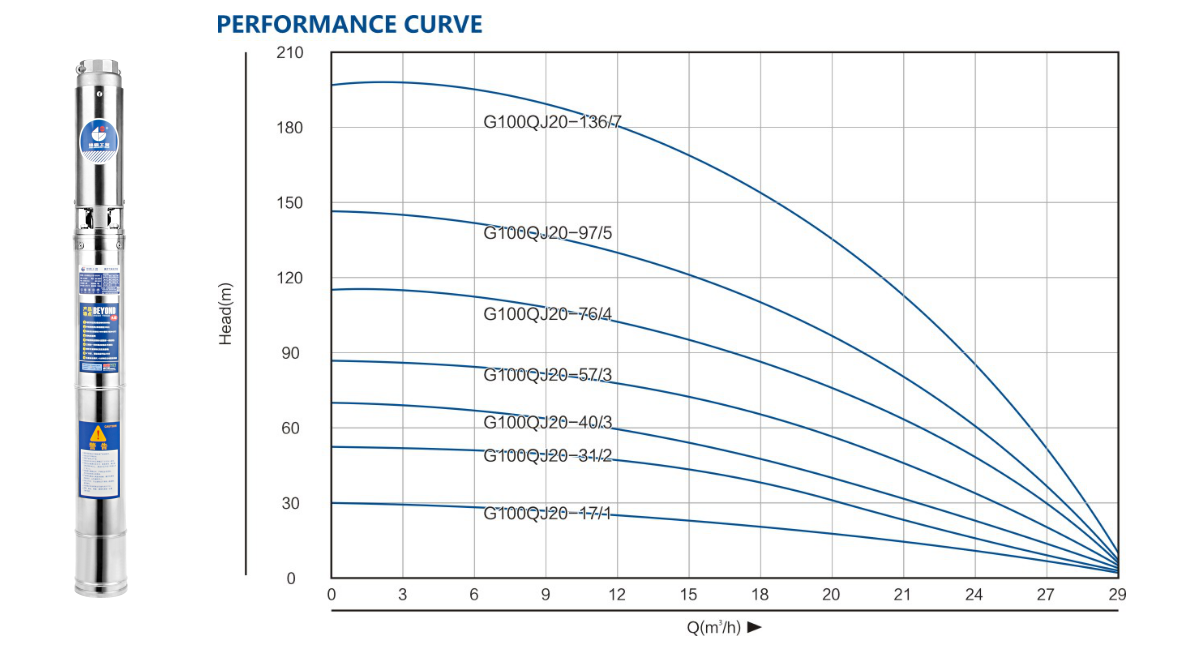

• G100 Series 20 Performance Curve

• G100 Series 20 TECHNICAL DATA

Note: Technical parameters are subject to change without notice.

• G100 Series 20 Mechanical Parameters

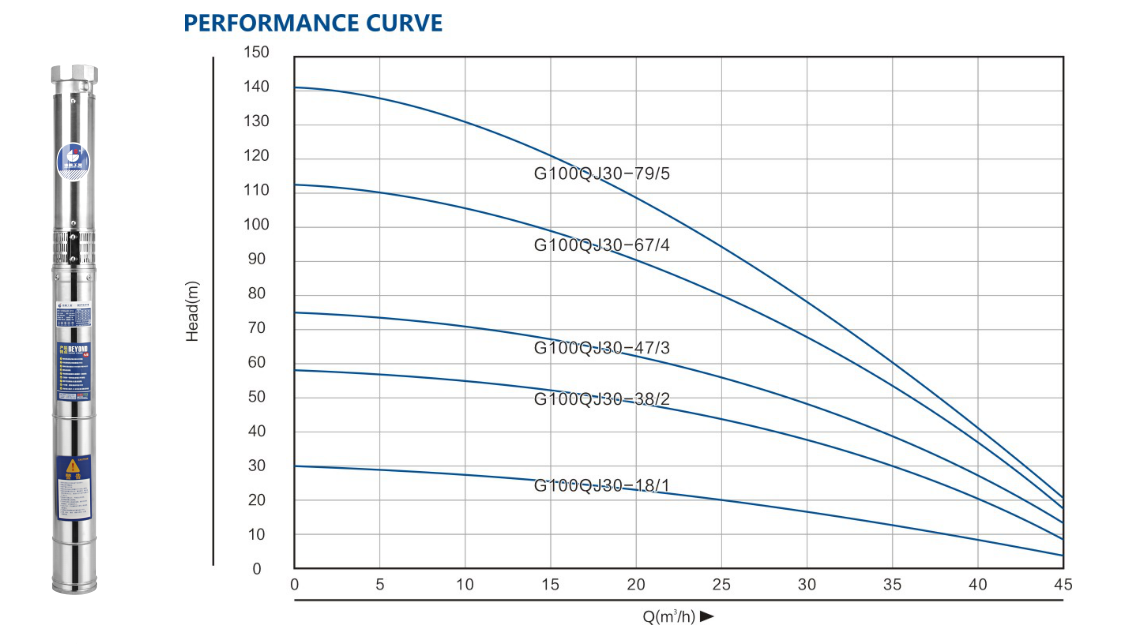

• G100 Series 30 Performance Curve

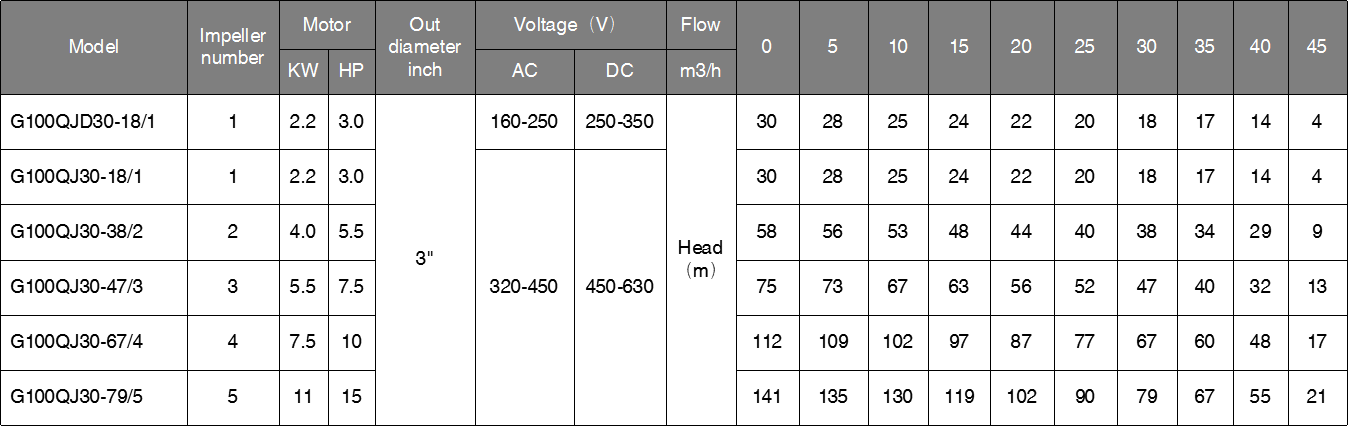

• G100 Series 30 TECHNICAL DATA

Note: Technical parameters are subject to change without notice.

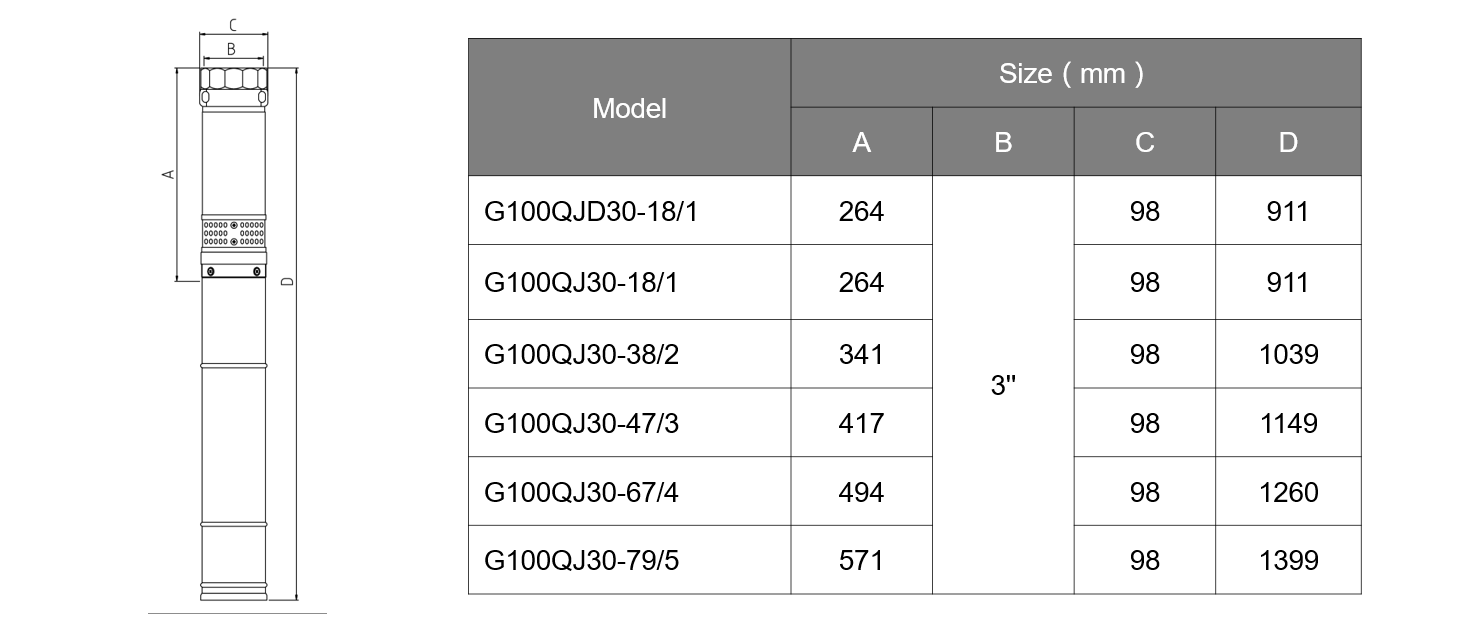

• G100 Series 30 Mechanical Parameters

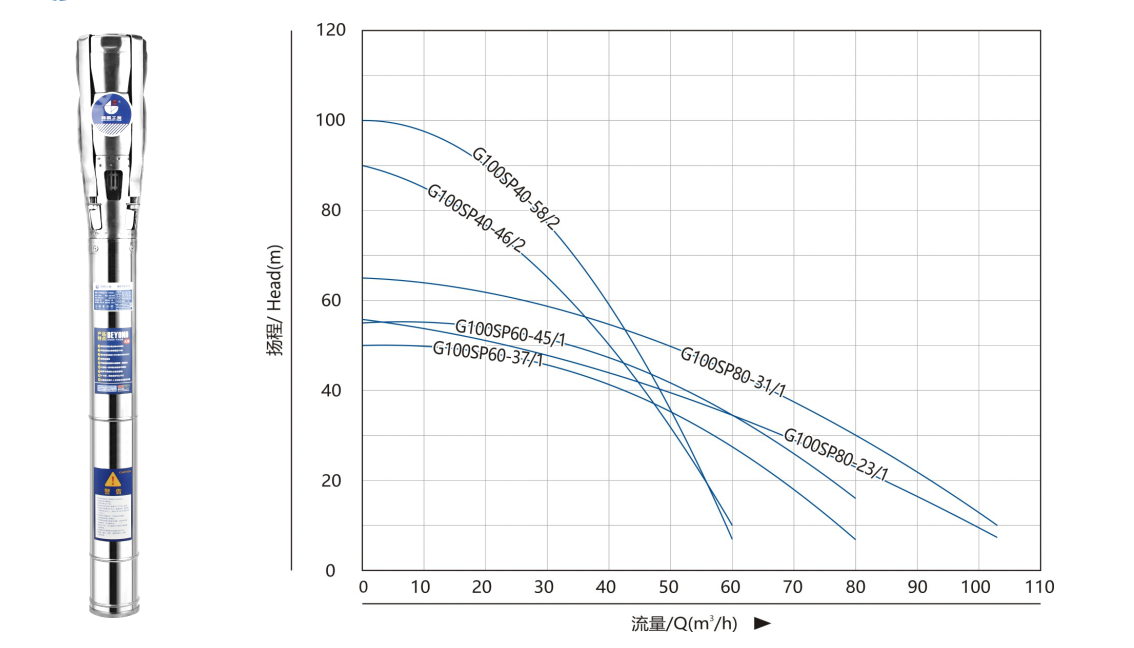

• G100 Series 40/60/80 Performance Curve

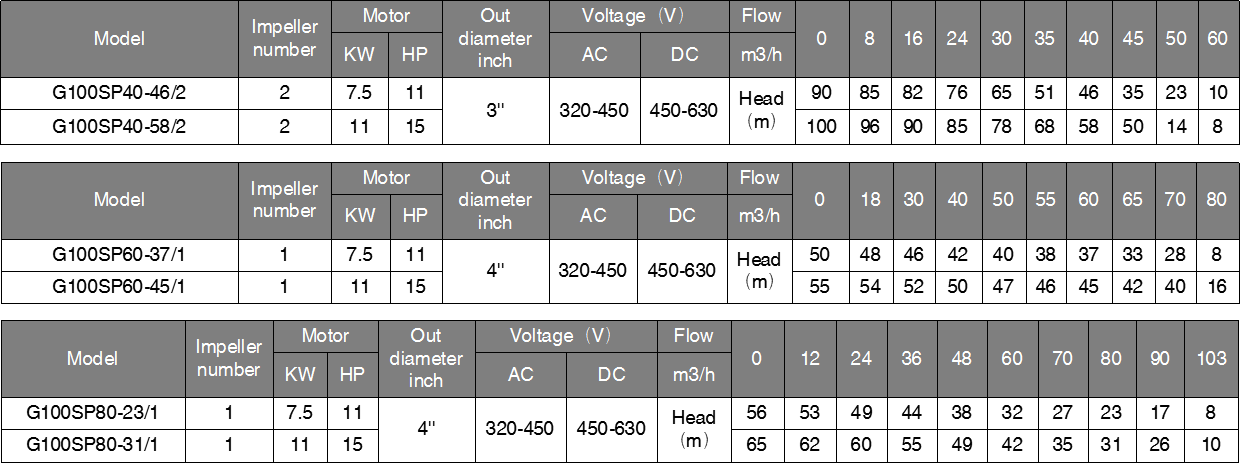

• G100 Series 40/60/80 TECHNICAL DATA

Note: Technical parameters are subject to change without notice.

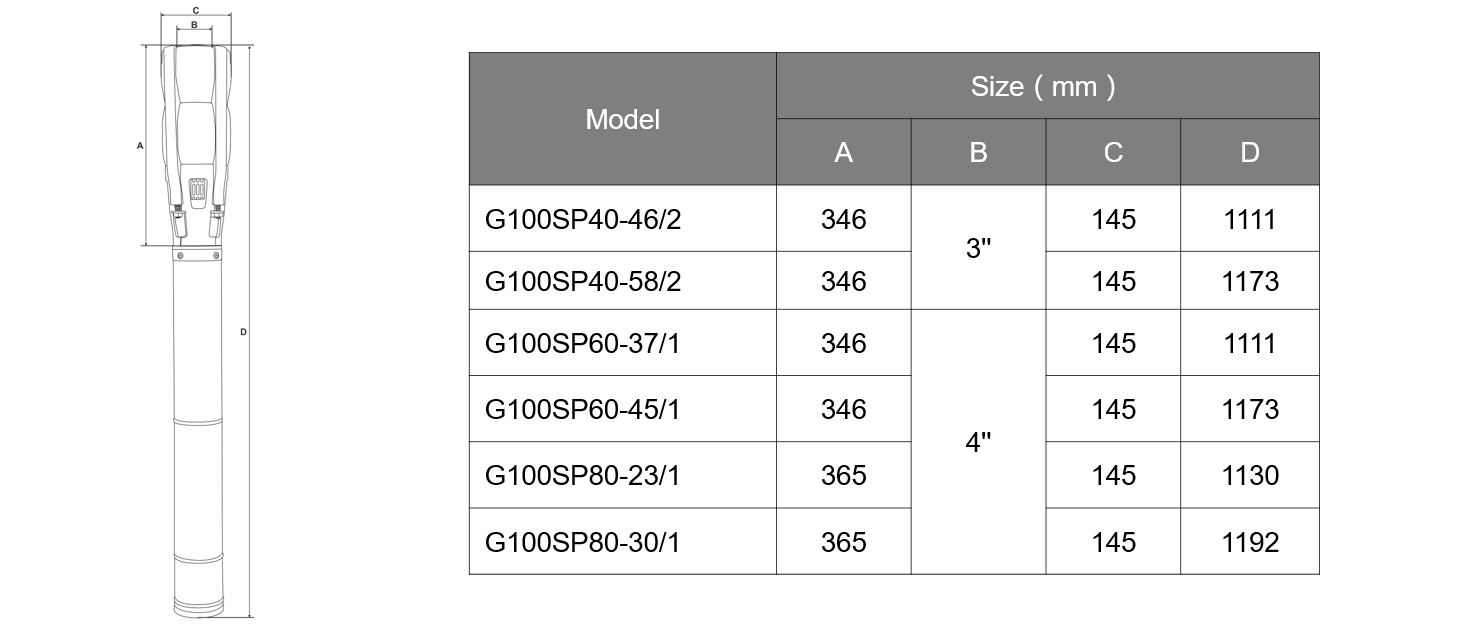

• G100 Series 40/60/80 Mechanical Parameters

• Application area

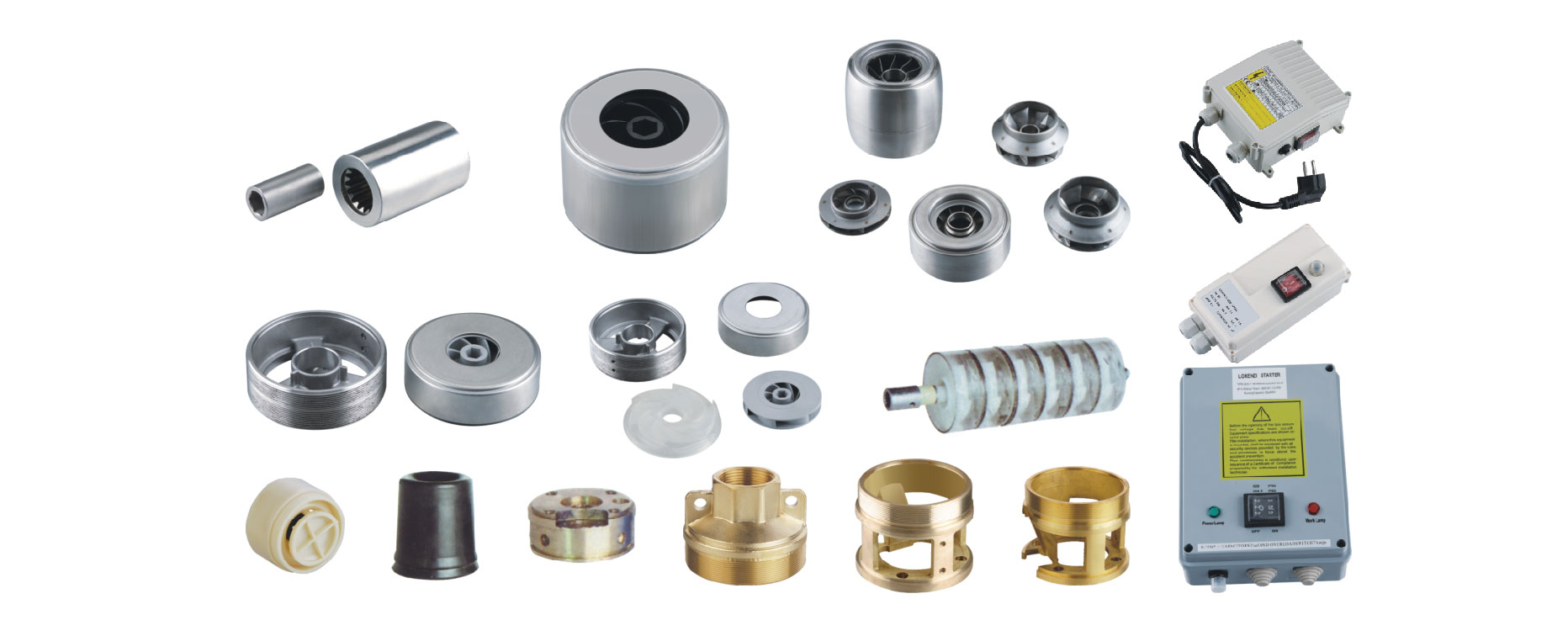

• Parts List
