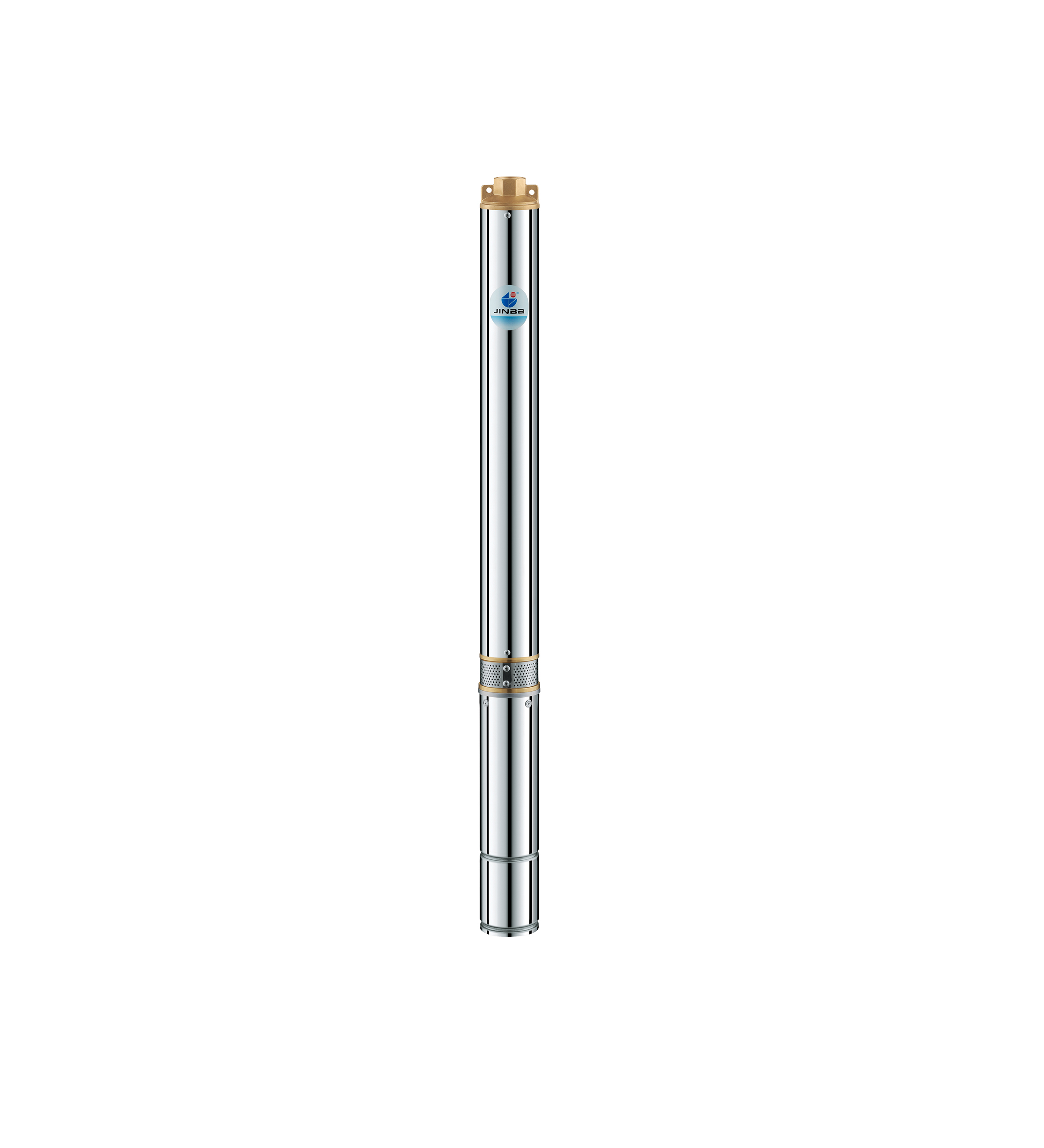

3.5′′ SD Series

1、Performance Characteristics

• Performance characteristics

1.1 High-grade Stainless steel for casing of motor and pump, shaft coupling, fastener, etc, elegant appearance, strong decay resistance, outstanding durability；

1.2 Floating impellers adopts single-stage floating structure, pom for impeller, high-strength composite PC for diffuser and cover plate and strong bearing gasket, which greatly reduce backwater and highly improve efficency；

1.3 Brass outlet and inlet, attractive and practical；

1.4 High-efficient and energy-saving motor is suitable for drinking water, filled with food-grade white oil, non-toxit and pollution-free；

1.5 The installation of the motor rotor conforms to “NEMA” standard；

1.6 The outlet is equipped with a high-strength ABS check valve, to effectively prevent the impact of water hammer.

2、Parameter Center

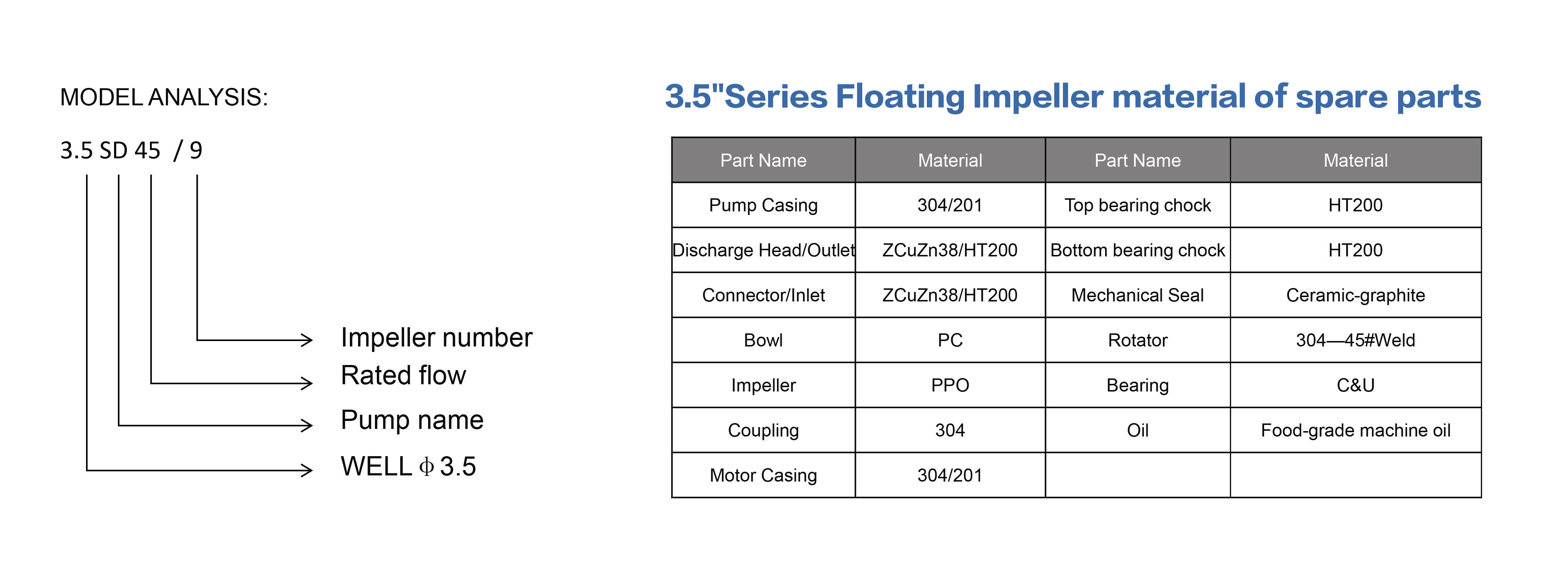

• Model Analysis

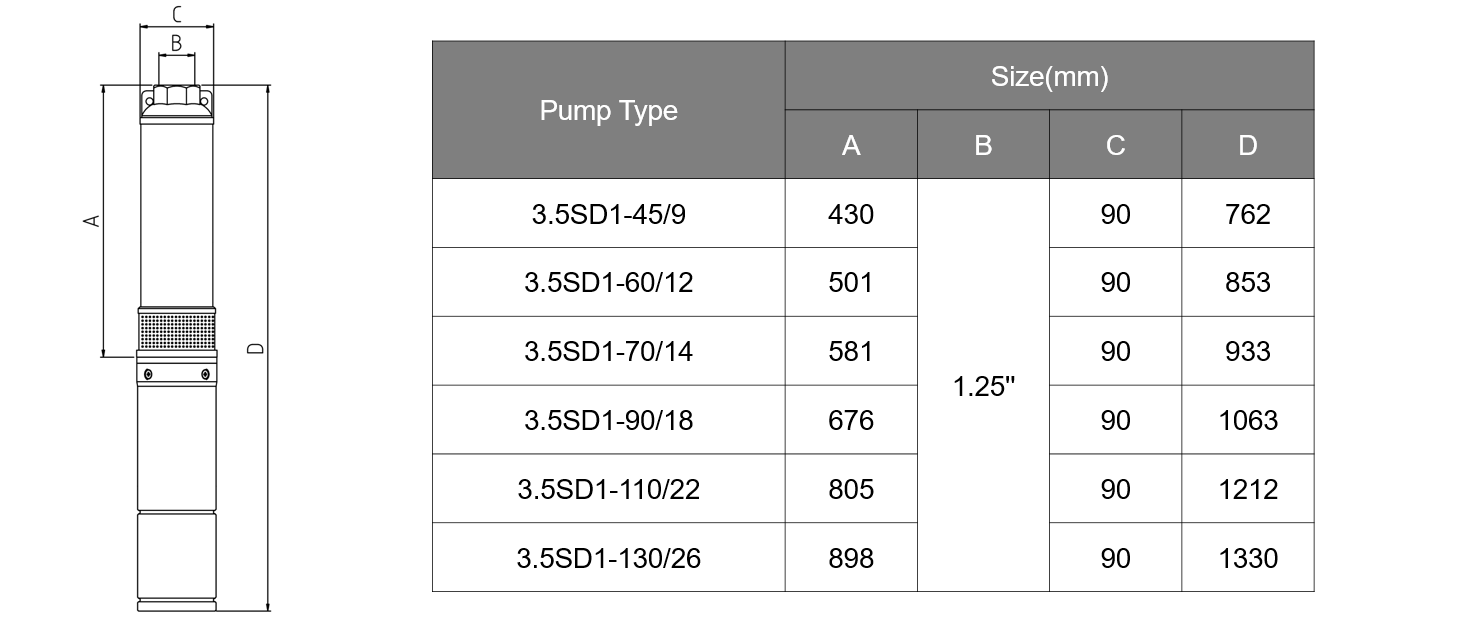

• 3.5SD1 Mechanical Parameters

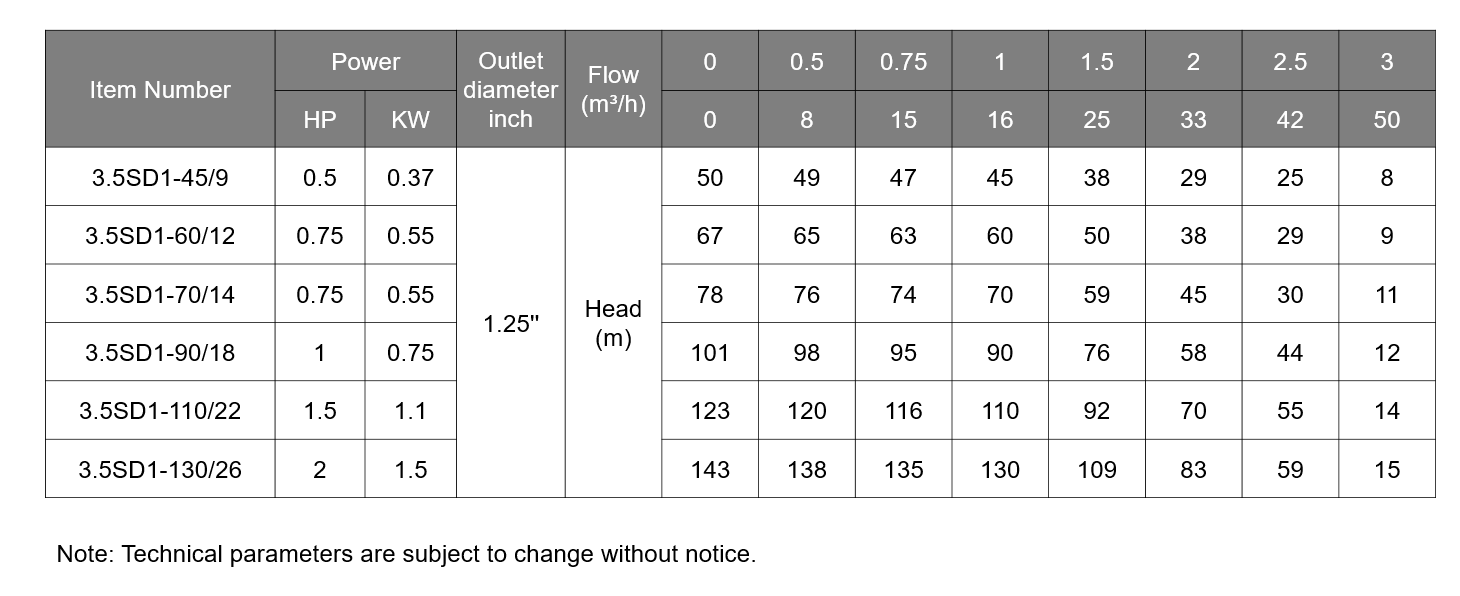

• 3.5SD1 Performance Curve

• 3.5SD1 Mechanical Parameters

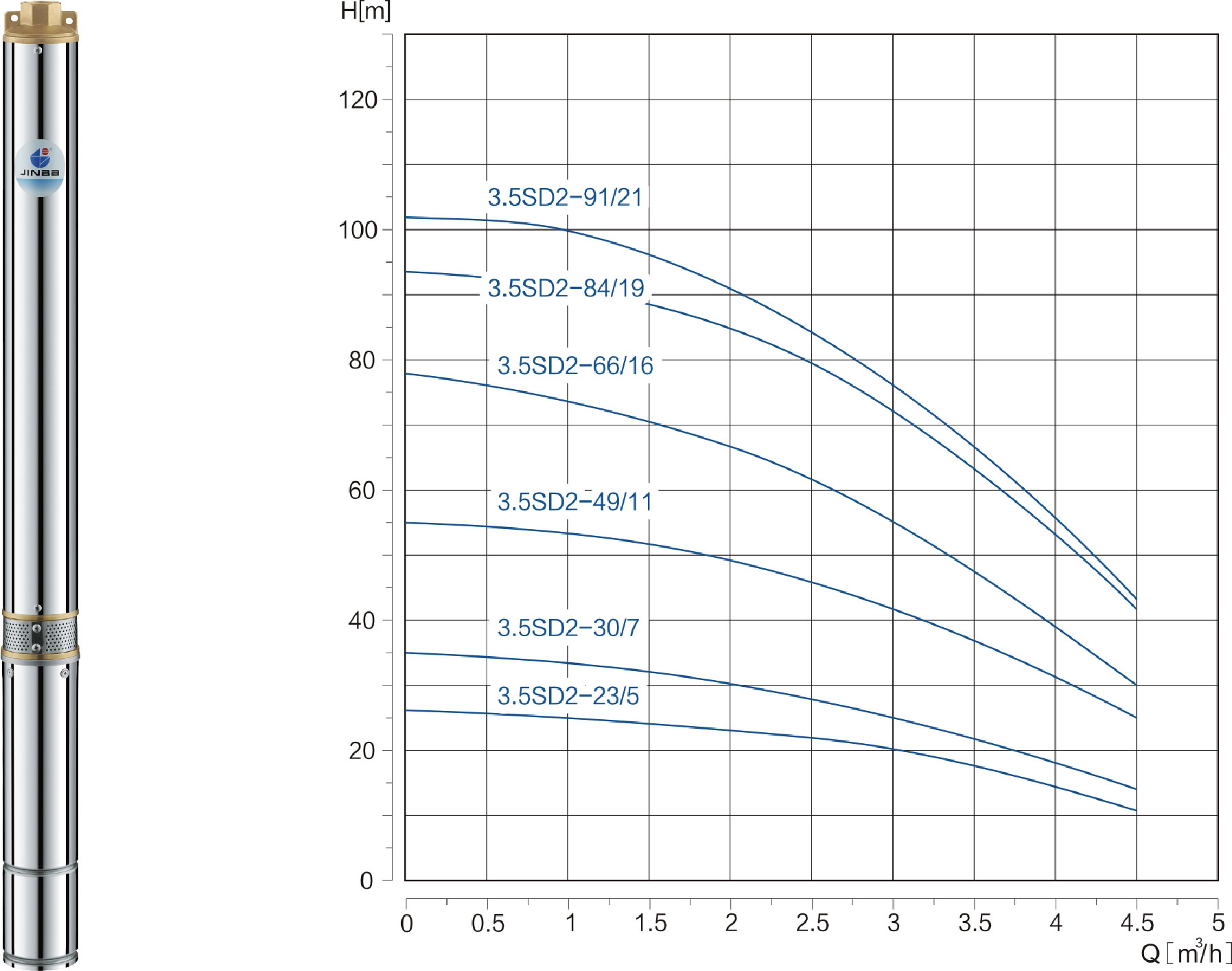

• 3.5SD2 Performance Curve

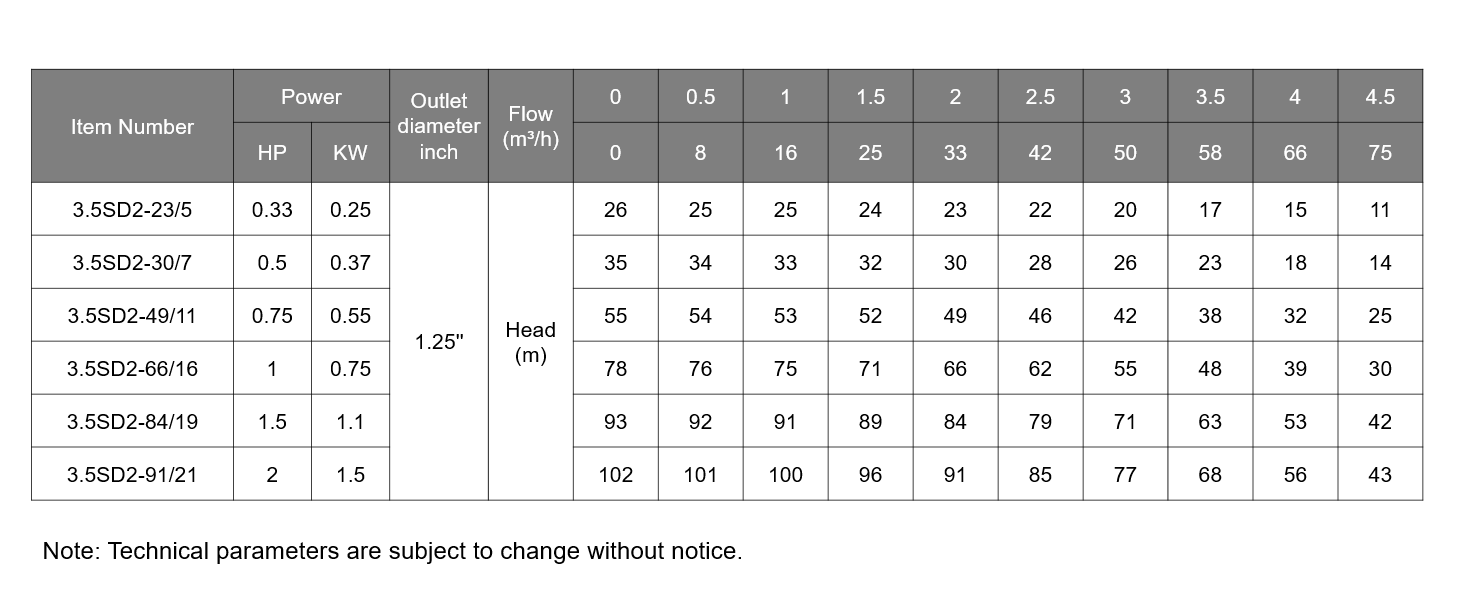

• 3.5SD2 TECHNICAL DATA

• 3.5SD2 Mechanical Parameters

• Application area

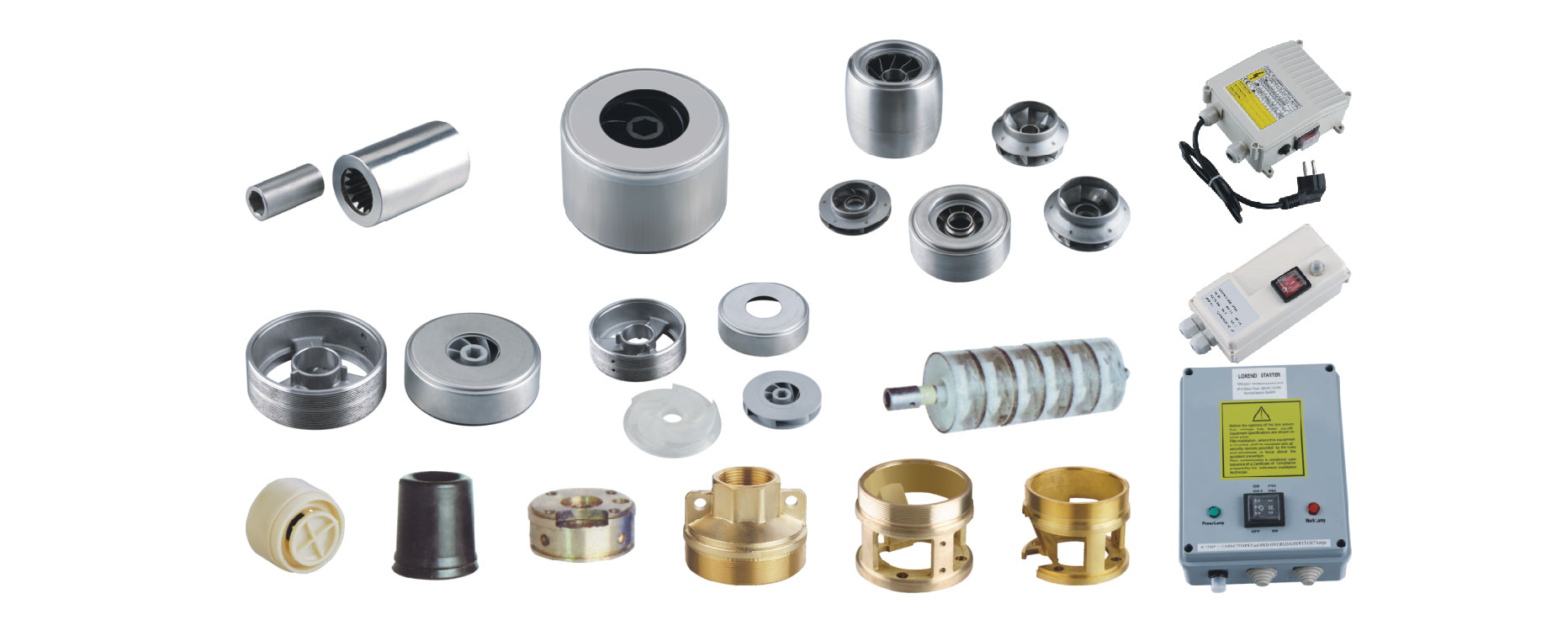

• Parts List
